193X460AEG01 scanner module

193X460AEG01 scanner module

Product Details Introduction

Product model: 193X460AEG01

Product Name: Scanner Module

manufacturer: GE（General Electric）

Series: 193X Series

Main functions:

Used for polling, sampling, and gating multiple analog or digital signals in a control system. Generally, it works in conjunction with the control board and analog input/output module to achieve signal selection and channel management functions.

Technical parameters (typical):

Installation method: plug-in card

Power supply: ± 15V or+5V DC (powered by the main system)

Signal type: Supports multi-channel input

Output method: Select signal or status output

Interface: Standard 193X backplane connection

Application scope:

GE Mark I/Mark II Control System

Steam turbines, power plant automation equipment

Multi channel signal scanning and control system

Maintenance suggestion:

Power off before plugging and unplugging

Check the pins IC、 Is the connector damaged

Check the scanning logic circuit and address logic when the channel is abnormal

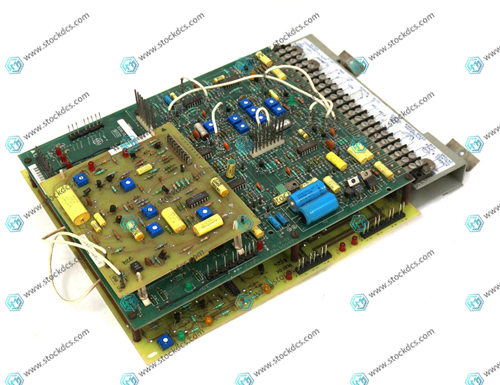

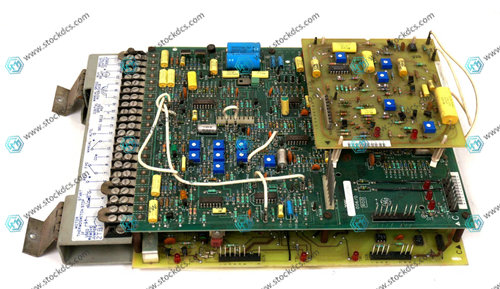

Product imag
