193X537ADG01 DC Drive Main Control Board

193X537ADG01 DC Drive Main Control Board

Product Details Introduction

Introduction to GE 193X537ADG01 DC Drive Main Control Board

GE 193X537ADG01 is the Main Control Board introduced by General Electric in its 193X series DC drive control system. This board plays a core role in the GE DC drive system, responsible for the main control logic of the entire drive system, including motor speed control, excitation regulation, protection mechanism, and other functions.

Technical specifications and functional features

Product type: DC drive main control board

Control method: Combining analog signal regulation with digital control logic

Input signals: including voltage, current, speed feedback, encoder signals, etc

Output signals: control the driving signal, feedback signal, alarm signal, etc. of the power module

Power requirement: The typical operating voltage is ± 15V DC (provided by the system power supply)

Signal input and output: Supports analog input (such as speed and current feedback) and digital signal input (such as switch contacts and start commands)

Status display: The board may include LED status indicators to display the system's operating status or fault diagnosis

Adjustment function: It has onboard functions such as gain adjustment, offset adjustment, and response time adjustment, used to adjust control accuracy and performance

Component configuration: including high-precision resistors, potentiometers, transistors, operational amplifiers, and other core components used to achieve precise control

Working temperature: The typical working temperature range is -20 ° C to+70 ° C

application area

GE DC drive system: such as GE Mark I, II, IV series motor control systems

Motor control and speed regulation system: mainly used for speed regulation and excitation control of DC motors

Industrial automation: widely used in industries such as metallurgy, power, petrochemicals, and papermaking

Replacement and Upgrade: Used for maintenance and upgrade of old control systems, replacing old control boards to improve system reliability

Power Drive System: Suitable for automated drive control of large mechanical equipment such as fans, water pumps, conveyors, etc

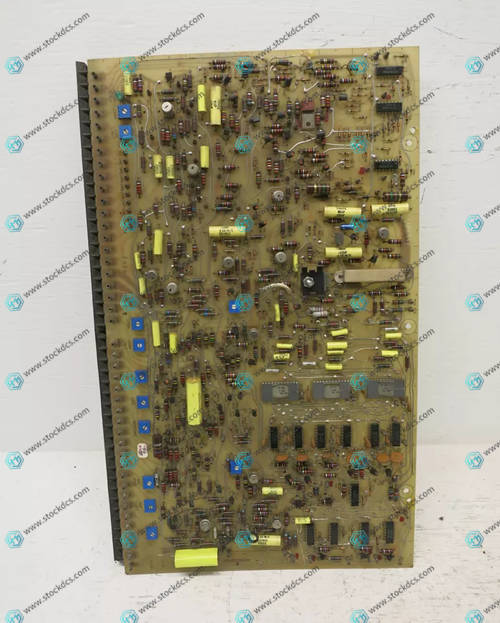

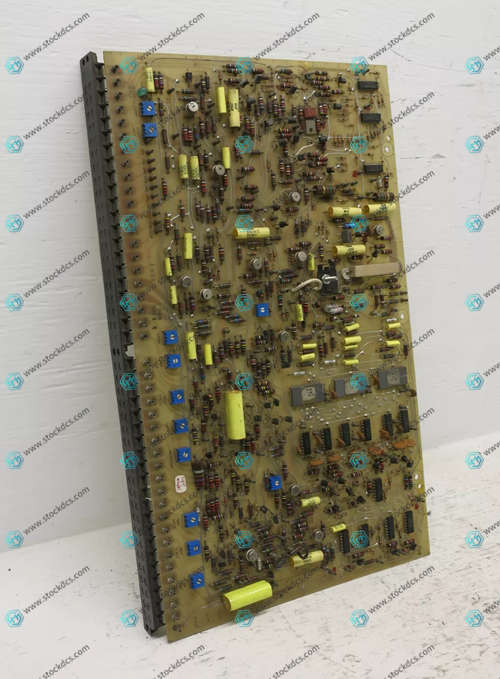

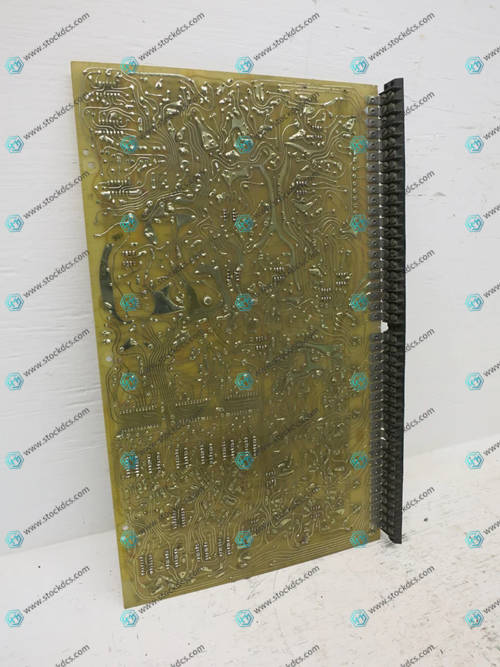

Product imag
