193X643AGG113 Static Drive Control Board

193X643AGG113 Static Drive Control Board

Product Details Introduction

GE 193X643AGG113 is a Static Drive Control Board in the General Electric 193X series. It is an important component in industrial automation control systems, responsible for static drive control and signal regulation in motor drive systems. This control board provides efficient and stable drive control and current adjustment capabilities through precise circuit design, and is widely used in automated production lines, robot systems, and other scenarios that require motor drive.

Basic parameters

Product model: 193X643AGG113

Product Name: Static Drive Control Board

Series: GE 193X series control module

manufacturer: General Electric (GE)

Power requirements:+ 5V DC/± 15V DC (provided through the system power module)

Interface type: Standard gold finger interface, slot type installation

Working temperature range:- 20°C ～ +70°C

Exterior specifications: Compliant with standard 193X series dimensions, suitable for industrial automation control system cabinets

Functional Features

Motor static drive control: This control board can accurately adjust the static drive signal of the motor, achieving stable operation and efficient control of the motor;

High precision current adjustment: By precise current control, the motor's current regulation is ensured to be smooth, avoiding overload or unstable situations;

Protection function: Built in overload protection, short circuit protection and other safety functions can prevent damage caused by motor system failure;

Multi channel signal processing: supports multi-channel input signals, can simultaneously control multiple motors or multiple drive systems, widely used in scenarios of multi axis robots and multi machine collaboration;

Quick response capability: By optimizing control algorithms, the drive board ensures fast response and real-time adjustment to input signals, ensuring motor drive accuracy;

Integrated design: Integrated design simplifies system wiring, reduces installation and maintenance complexity, and is suitable for large-scale industrial automation applications.

application area

Industrial automation control: widely used in automated production lines and motor drive systems to precisely control the motion and output of various motors;

Robot system: used for motor drive control in industrial robots to ensure efficient and accurate task execution;

Power equipment control: suitable for starting, stopping, and speed control of motors in power systems, such as wind power generation, power dispatch, and other fields;

High precision equipment driver: applied to equipment that requires high-precision motor control, such as CNC machine tools, precision instruments, etc;

Heavy industries such as metallurgy and chemical engineering: used in motor control systems that require high stability to ensure stable operation of industrial equipment in harsh environments.

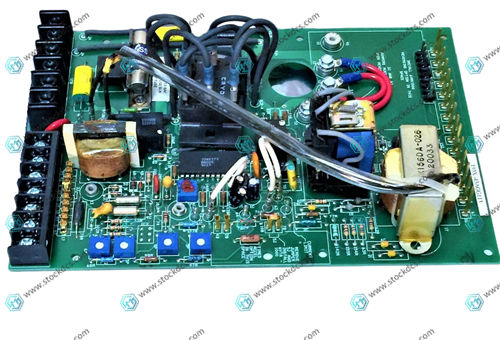

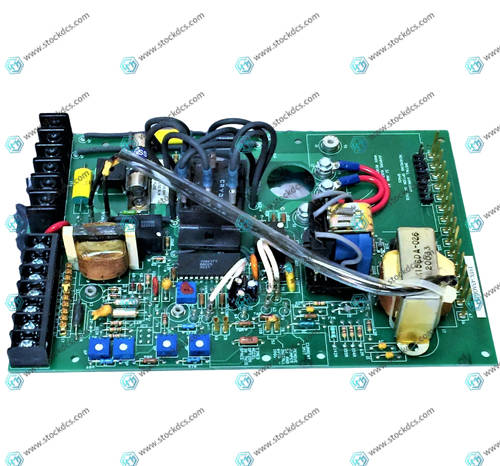

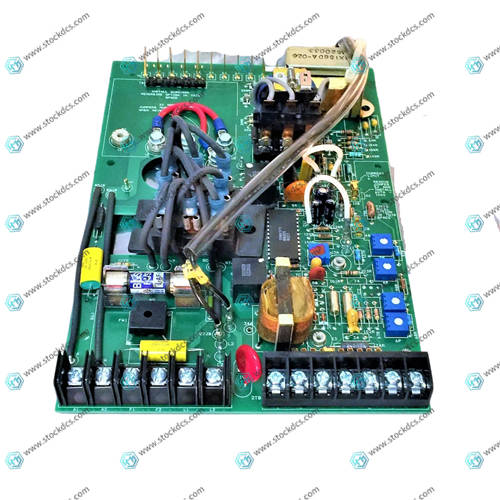

Product imag
