193X643AHG222 controller board

  • Goods status: new/used
  • Delivery date: stock
  • The quality assurance period: 365 days
  • Phone/WhatsApp/WeChat:+86 15270269218
  • Email:stodcdcs@gmail.com
  • Tags:
  • Get the latest price:Click to consult

193X643AHG222 controller board

Product Details Introduction

Product model: 193X643AHG222

Product Name: Controller Board

Series: GE 193X series control module

Manufacturer: General Electric (GE)


product overview

GE 193X643AHG222 is a high-performance controller board in the GE 193X series, used for the main control logic control part in industrial drive systems. This module is designed to coordinate and manage signal processing, logic judgment, and status control in electric drive systems. It is a key logic and functional processing core in the drive system and is suitable for various motor control, variable frequency speed regulation, and automation scenarios.


Technical Parameter

Supply voltage:+5V/± 15V DC (supplied uniformly by the system)


Installation method: Slot style gold finger connection, compatible with 193X rack system


Size specification: Standard 193X board size


Working temperature: -20 ℃~+70 ℃


Storage temperature: -40 ℃ to+85 ℃


Electrical interface: Multi pin gold finger signal interface, supporting parallel processing of multiple signals


Signal type: Analog input/output+digital control signal


major function

Logic control core: As the central control board of the driving system, 193X643AHG222 is responsible for collecting, analyzing, and outputting system operation control logic;


Status monitoring management: Real time monitoring of system operation status and rapid logical response based on sensor/signal input;


Fault self diagnosis function: equipped with basic self checking and error feedback functions, improving system stability and maintenance efficiency;


High speed processing capability: capable of responding to changes in high-speed motors, suitable for high-frequency start/stop scenarios;


Strong interface compatibility: compatible with various other 193X series modules from GE (such as driver boards, power boards, interface boards, etc.), making it easy to configure modularly.

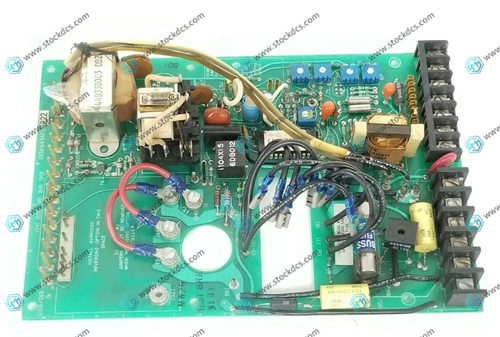

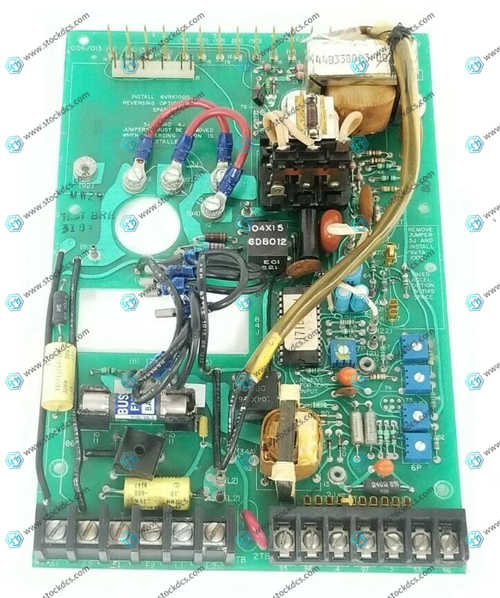

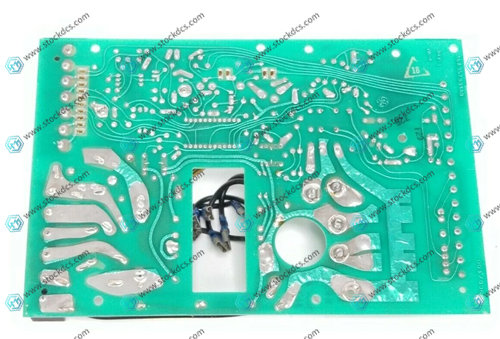

Product imag
