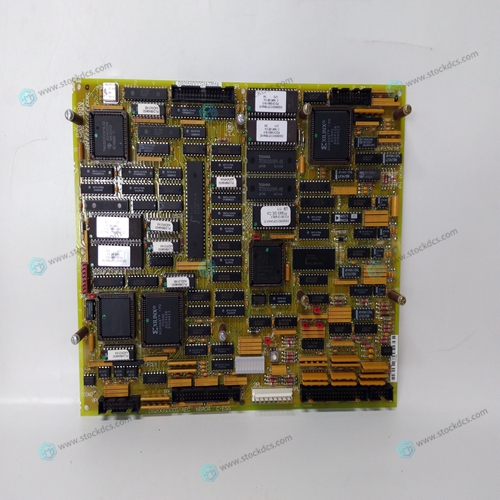

DS200SDCCG1AEC DS215SDCCG1AZZ01A module

1 Add the MVI69-MCM module to the project. Right-click the mouse button on the I/O CONFIGURATION option in the CONTROLLER ORGANIZATION window to display a pop-up menu. Select the NEW MODULE option from the I/O CONFIGURATION menu.

2 Select the 1769-MODULE (GENERIC 1769 MODULE) from the list and click OK.

3 Enter the Name, Description and Slot options for your application, using the values in the illustration above. You must select the COMM FORMAT as DATA - INT in the dialog box, otherwise the module will not communicate over the backplane of the CompactLogix rack.

4 Configure the Connection Parameters to match to the Block Transfer Size parameter in the configuration file. Use the values in the table corresponding with the block transfer size you configured.

Select the REQUEST PACKET INTERVAL

 value for scanning the I/O on the module. This value represents the minimum frequency the module will handle scheduled events. This value should not be set to less than 1 millisecond. Values between 1 and 10 milliseconds should work with most applications.Save the module. Click OK to dismiss the dialog box. THE CONTROLLER ORGANIZATION window now displays the module's presence.Copy the Controller Tags from the sample program. 9 Copy the User Defined Data Types from the sample program. 10 Copy the Ladder Rungs from the sample program. 11 Save and Download the new application to the controller and place the processor in run mode.

Adding the Module to an Existing MicroLogix Project

 If you are installing and configuring the module with a MicroLogix controller, follow these steps. If you are using a CompactLogix controller, refer to the previous section. The first step in setting up the processor ladder file is to define the I/O type module to the system. Start RSLogix 500, and follow these steps: 1 In RSLogix, open your existing application, or start a new application, depending on your requirements. 2 Double-click the I/O CONFIGURATION icon located in the Controller folder in the project tree. This action opens the I/O Configuration dialog box.

1.Payment method and delivery

Shipment: EMS,DHL,UPS & FEDEX

Payment: T/T or Western Union

2. About us

We are professional company and we are expert in this business, we have highly experienced production team, or sales team, or purchase team, we have most advanced production line. We are reputable in the market.

3. Application industry

Our main products are widely used in metallurgy, oil and gas, glass manufacturing, aluminum, petrochemical, coal mine, paper making and printing, textile printing and dyeing, machinery, electronic manufacturing, automobile manufacturing, tobacco, plastic machinery, electricity, water conservancy, water treatment/environmental protection, municipal engineering, boiler heating, energy, power transmission and distribution, etc.
