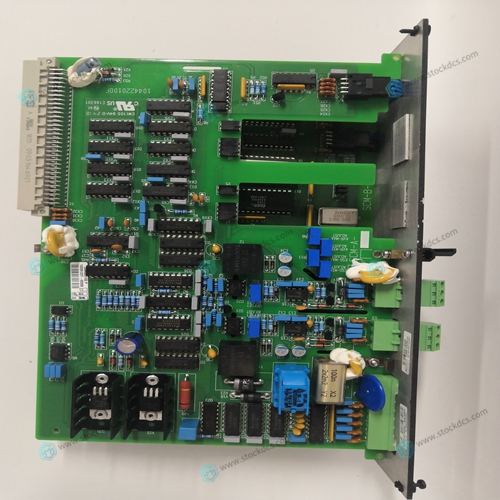

DEIF IOM5.1 controller

The restrictions described for the CD link do not apply to the DI link. Requests can be transferred via bus couplers and transmission acknowledged. There are no restrictions to certain device addresses and transmitter blocks.The features of the function blocks “Display output block” (BILD), “Log output block” (PROT), “Group display block” (GP) and “Alarm signalling block” (MEL) are as follows: – Similarity to indicator and lamp panels due to the display of measured values or texts on the screen or an output via a printer. – Up to 4 alphanumeric characters may be used as a block name. The group display block is an exception, as only numbers between 1 and 56 may be used here.

In contrast to the function blocks

 data blocks do not possess an algorithm. Only one data type is permitted for each data block. The maximum number of data is limited to 256 per block. The following data types exist: – Single precision analog values (10–4) – Double precision analog values (10–9) – Binary values – Time values – Alphanumeric characters The driver blocks for input and output of analog or binary process values and the bus linking blocks for analog or binary values and alphanumeric characters fetch or route the values from or to data blocks initiated according to parameterization.

User–specific new function blocks

 (user function blocks) In automation systems, the user may create and integrate his own function blocks in addition to the standard function blocks. The system provides special configuration instructions (see Chap. 5) for creating new data structures and programs: – Data structure generation (operator input ”NEDA”) Definition of the data structure (data description and original parameter set) for a new function block. A description (data type, element name, attributes, etc.) is entered for each block input/output. Process–controllable parameters in a block are represented on the process communication keyboard in the same fashion as standard function blocks.

after-sale service

Focus on sales of imported industrial automation equipment

1 year professional warranty service

Our large inventory contains current and outdated products in the automation industry, if you are looking for new leftovers Products. We are knowledgeable and friendly about all outdated and legacy automation, our remaining products or discontinued parts Our internal team tests each part before delivery. Good colleagues can help you get what you need,All parts sold by AMIKON are actually in stock. With our competitive prices, we will This makes emergency transportation a solution to emergency shutdown. Haodi provides you with the necessary parts inventory A simple solution to the situation.
