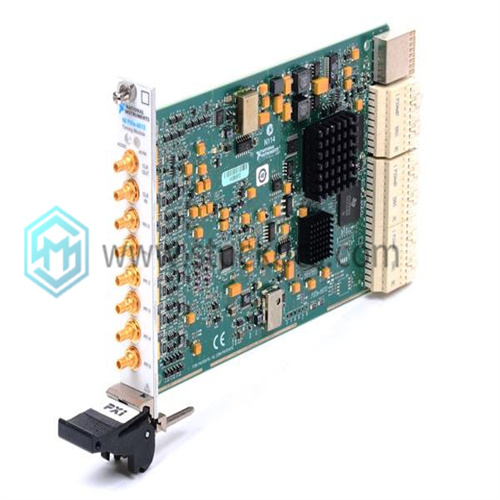

NI PXIe-6672 Measuring unit

NI PXIe-6672 Measuring unit

NI PXIe-6672 is a high-performance digital clock and synchronization module designed to assist users in high-speed data acquisition, processing, and control applications on the PXI Express bus. This module provides multiple clock sources and synchronization signals, enabling high-precision synchronization between multiple PXIE systems, and supporting multiple clock and trigger modes

Configuration instructions:

The main configuration of the NI PXIe-6672 module includes selecting a clock source, configuring clock frequency, configuring clock output, and selecting trigger mode. This module can be directly connected to other PXIE modules or synchronized through synchronization lines between multiple PXIE systems.

Function:

Provide multiple high-precision clock sources and synchronization signals to achieve high-precision synchronization between multiple PXIE systems.

Supports multiple clock and trigger modes, suitable for different types of application needs.

Data collection, processing, and application startup and shutdown can be controlled through software or hardware triggering.

Supports PXI Express bus, providing high-speed data transmission and processing capabilities.

Application field:

The NI PXIe-6672 module is widely used in applications that require high-precision synchronization and timing control, such as radar, communication, testing and measurement, image processing, machine vision, etc. In these applications, high-precision synchronization and timing control are important factors to ensure data accuracy and repeatability. The excellent performance and reliability of the NI PXIe-6672 module have been widely recognized and applied.
