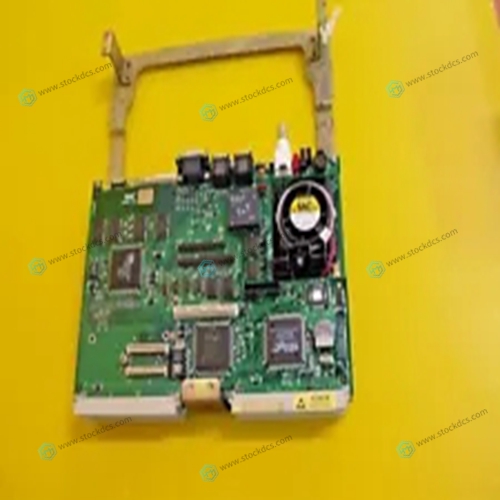

VMIVME-7588 Enhanced Pentium Processor-Based VMEbus CPU

• Pentium® processor-based CPU – 133 and 166 MHz versions, 200 and 233 MHz Pentium processors with MMX™ • External (L2) cache – 512 Kbyte synchronous burst SRAM

• Up to 256 Mbyte DRAM with or without parity using 72-pin SIMMs

• 64-bit PCI SVGA controller with 2 Mbyte video DRAM

• On-board Fast Ethernet controller with options for 10BaseT, 10Base2, and 100BaseTX interfaces

• PCI fast/wide SCSI-2 controller with front panel interface

• On-board enhanced IDE hard drive and floppy drive controllers

• Two high-performance 16550-compatible serial ports

• Enhanced parallel port with ECP/EPP modes supported

• PS/2-style keyboard and mouse ports on front panel

• Real-time clock and miniature speaker included

• PMC (PCI mezzanine card expansion site: IEEE-P1386 common mezzanine card standard, 5 V signaling)

• VMEbus data transfers up to 58 Mbyte/s

• VME64 modes supported: A32/A24/D64/D32/D16/D08 (EO)/MBLT64/BLT32

• VMEbus interrupt handler, interrupter, and system controller

• Includes byte-swapping hardware for little-endian and big-endian data interfacing

• VMISFT-9420 IOWorks Access™ and other IOWorks® family software

MICROPROCESSOR — The VMIVME-7588 brings Intel® Pentium processor power to VMEbus, offering processor speeds from 133 to 233 MHz. The Pentium processor has 32-bit addressing and a 64-bit data bus. Its superscalar architecture includes two pipelined integer units and a pipelined floating-point unit, allowing two instructions to be executed per clock cycle. A dynamic branch prediction unit and separate instruction and data caches also increase the Pentium processor’s performance.

EXTERNAL (L2) CACHE MEMORY — The VMIVME-7588 complements the Pentium processor with 512 Kbyte of external cache memory. Near-zero wait state operation of the Pentium processor is ensured by the use of synchronous burst static RAM with the Intel Triton II chipset.

DRAM MEMORY — The VMIVME-7588 accepts two 72-pin SIMM DRAM modules with or without parity for a maximum memory capacity of 256 Mbyte. The on-board DRAM is dual ported to the VMEbus.
