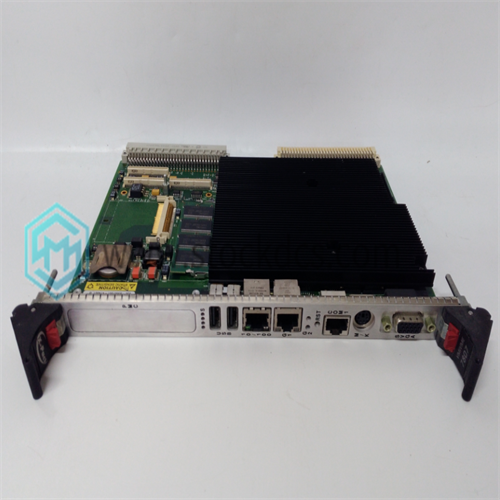

GE VMIVME-7698-146 Gas turbine control module

GE VMIVME-7698-146 Gas turbine control module

GE VMIVME-7698-146 is a high-performance VME bus interface module, with configuration instructions and functional functions as follows:

Configuration instructions:

Bus interface supporting 6U VMEbus

Provide two high-speed serial port channels, each with a maximum transmission rate of 1.5 MBaud

Supports RS-232 and RS-422/485 communication standards

Using high-speed FPGA processors and dual port RAM for data caching

Function:

Implement high-speed data communication between computers and external devices

Provide reliable serial communication interface and support communication protocols of different standards

Increase system processing power and reduce CPU burden

Improve data transmission efficiency and reliability through dual port RAM for data caching

Application field: GE VMIVME-7698-146 is widely used in industrial automation, communication, military, aerospace and other fields that require high-speed data communication. For example, it can be used in applications such as control systems, data acquisition and processing, signal processing, image processing, real-time control, etc.
