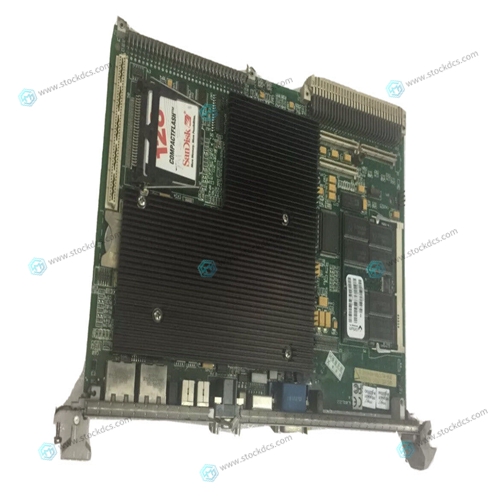

GE VMIVME-7750-934 Gas turbine interface module

Place your module in any slot of the I/O chassis except for the extreme left slot. This slot is reserved for processors or adapter modules.After determining the module’s location in the I/O chassis, connect the wiring arm to the pivot bar at the module’s location.Use the plastic keying bands, shipped with each I/O chassis, for keying the I/O slot to accept only this type of module. The module is slotted in two places on the rear edge of the circuit board. The position of the keying bands on the backplane connector must correspond to these slots to allow insertion of the module. You can key any connector in an I/O chassis to receive these modules except for the leftmost connector reserved for adapter or processor modules.

Place keying bands between

the following numbers labeled on the backplane connector (Figure 2.1): • Between 24 and 26 • Between 28 and 30 You can change the position of these bands if subsequent system design and rewiring makes insertion of a different type of module necessary. Use needlenose pliers to insert or remove keying bands.

Setting the Configuration Jumpers

The VHSC module has user-selectable jumpers for each input channel.

These jumpers consist of one each: • filter or high speed operation jumper

• +5V or +12-24V operation jumper Each counter has a total of 6 jumpers associated with it:

• Channel A filter/high speed jumper

• Channel A voltage jumper

• Channel B filter/high speed jumper

• Channel B voltage jumper

• Gate/reset filter/high speed jumper

• Gate/reset voltage jumper
