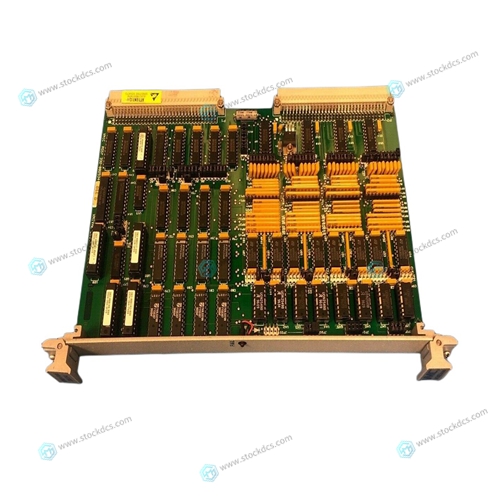

GE VMIVME-2534 Gas turbine serial module

The GE VMIVME-2534 is a high-performance, single-board computer that is designed to meet the needs of mission-critical applications in harsh environments. This board is based on the VMEbus architecture and is equipped with an Intel Pentium III processor running at 1 GHz, up to 1 GB of SDRAM, and up to 512 MB of Flash memory.

The VMIVME-2534 supports a wide range of operating systems, including Windows, Linux, and VxWorks, and is designed to operate in temperatures ranging from -40°C to +85°C. It also features a variety of I/O interfaces, including Ethernet, USB, and serial ports, making it suitable for a wide range of applications.

• 32 bits of high-voltage outputs

— High-voltage outputs — High-current sink (600 mA)

— High breakdown voltage (60 V minimum)

— Output clamp diodes

— Overcurrent protected (1 A) thermal limit protection

— UDN2549B incandescent or inductive load driver (no external warming or current limiting resistors required)

• 32 bits of high-voltage inputs

— Each group of 8 inputs are jumper-selectable to monitor: contact closure, voltage source, current sinking, and differential signals

— Open circuit provides logic zero or (jumper-selectable) logic one

— Input filter option

— User-selectable input voltage thresholds (1.25 to 60 V)

• P2 I/O connection (no front panel connectors)

• Built-in-Test (off-line and real-time support)

• 100 percent testing of all active components (including output drivers)

• Front panel with fail LED
