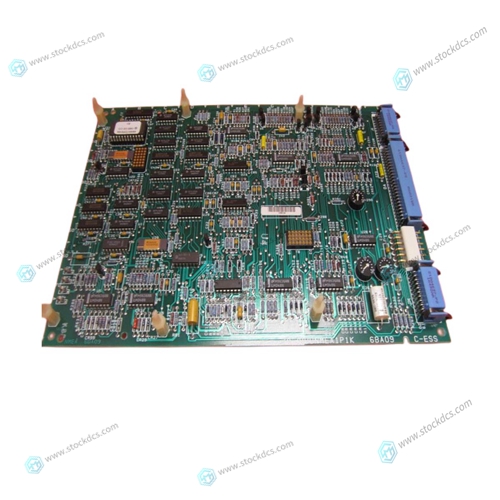

GE DS3800NMEA1P1K Relay card

• Check whether the robot interferes with the outside equipment. If the robot interferes, remove the cause. • Check the connection of UVW wire of motor again. And check the breaking of the wire. • There is a possibility the robot moves by extra load. Check the motion status of robot again and reduce the teaching speed. Then confirm the reoccurrence.Check that the type of motor is the same as the one described in the manual. If the type is not correct, replace it with the correct motor

 Check that the type of motor set

 by system configuration is the same as the actual installed one. If set data by system configuration is correct, replace installed motor with correct one. If set data by system configuration is not correct, set the correct system configuration. • If the error occurs again, replace WRCA01 and/or WRCF01 circuit board. • Replace the servopack, motor for axis where the error occurred.

The number of pulses generated

 by one rotation of the motor was not a regulated pulse numbers. There is a possibility the position was shifted. (But, if this alarm occured simultaneously with the alarm related to the encoder, it was thought this alarm accompanied the encoder alarm.) • Noise of outside equipment • Defective WRCA01, WRCF01 circuit board • Down of the power supply voltage for the encoder • Defective motor(encoder) • Check whether there is a equipment generating loud noise. • Check the ground of controller is correct. • When the errror occurred at external axis, set the ferritecore on the encoder cable for noise measure. • If the error occurs again, replace WRCA01 and/or WRCF01 circuit board. • Replace the motor for axis occured the error.
