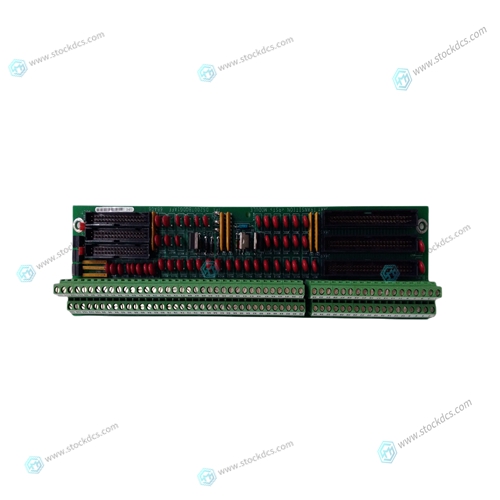

GE DS200TBPXG1A Gas turbine counter plate

Initial start up

1. Disconnect the signal connector from the drive.

2. When a multi-axis system is to be powered up, remove the AC supply fuses for all the drives except for the drive to be tested.

3. Apply power to the connected drive. After a delay of about 1 second, the green LED will light.

4. Check that the motor is free to turn by hand.

5. Check that there is no current flowing through the motor.

6. Check that the green LED stays on.

7. Switch off the drive.

8. Repeat instructions 1 to 7 for all other axes.

After switching off

 wait for about 10 seconds before re-applying power to the drives in order to avoid loss of protection in the drives already powered. The next instruction requires the drive to be powered up. Any incorrect wiring to the motor may result in the motor turning at high speed and in the wrong direction. During these operations the load must be disconnected and the operator must be able to turn the system off quickly Alter the reference signal for the motor to turn clockwise or anti-clockwise. Note that the motor may turn extremely slowly. If the motor rotates in the reverse direction to the expected one, reverse the motor and tachogenerator connections. 9. Repeat operations 1 to 8 for all the other axes. 10. Leave the system powered up for at least 15 minutes in normal working conditions. Check the I2t protection LED is off and the green drive normal LED is on.

Check that the speed reference signal is zero volts.

2. Connect the signal connector to the first drive. Switch on the drive.

3. Check that the motor does not rotate.

4. Enable the drive.

5. Check that the motor is stationary or turns slowly due to a signal offset.

6. Apply a signal to the STOP input.

7. Try to force the motor shaft to turn in both directions and check torque is applied at zero speed. This checks that there is symmetric torque generation.
