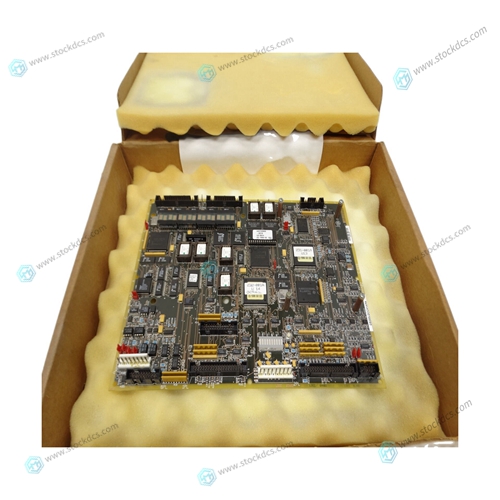

GE DS200TBQGG1A Gas turbine acquisition card

AAUI (Transceiver) Port The 14-pin AAUI port connects to an external Ethernet-compatible transceiver via an IEEE 802.3 transceiver cable. GE Fanuc catalog number IC649AEA102 (for 10Base T) or IC649AEA103 (for 10Base2) are suitable transceivers (see Appendix J for details). Default MAC Address Label The Default MAC Address label lists the Ethernet MAC address to be used by this module. Serial Number Label The Serial Number Label indicates the serial number of this Interface.

If the servo motor is not going to be placed immediately in service, then it needs to be stored in an environment which is dry and has a constant temperature in order to prevent the risk of condensation. Should the motor be placed in storage for a longer period of time, it is important to make certain that the drive shaft and the surface of the flange are completely covered by a rust-proofing agent. After storage for a longer period of time, (more than 3 months), it is important to first operate the motor at a low speed to allow the grease to be evenly distributed within the motor.

Receipt of the Materials

 All servo motors have been completely checked before shipping. ¾ After carefully unpacking the materials, please check to make certain that the servo motor is in good condition. ¾ Please do not pull on the power cord when moving the servo motor. ¾ Please check that the information on the product name plate matches the specifications of your order. ¾ In the event that the product has been damaged during transport, it is imperative that the shipping company be notified of the problem within 24 hours of receipt of the materials. Note: The package may contain other important documentation or additional parts.

Description

By utilizing high-energy magnetic materials it is possible to design small diameter disk motors. Due to the high-energy magnetic materials and the carefully optimized technical construction of the rotor, the motors have a low moment of inertia. The stability of the magnetic material and the design of the magnetic field in opposition with demagnetization allow for maximum currents of up to 3- 4 times the rated current. This is the result of the high acceleration capacity of the low-inertia three-phase AC servo motors. Through the permanent excitation of the magnets, no heat loss due to electrical current occurs within the rotor. With the three-phase AC-servo motor, heat loss, due to electrical current, occurs only in the stator, which can then be directly drawn off.
