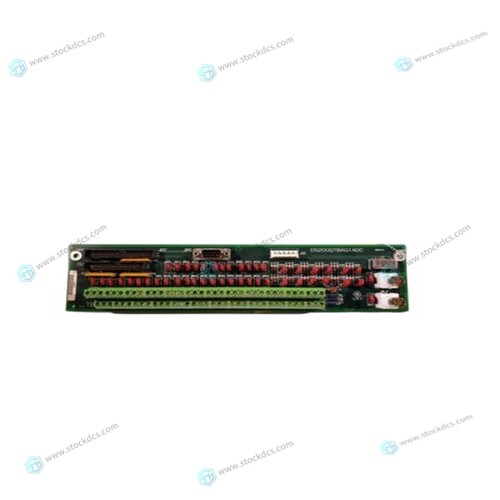

GE DS200QTBAG1A Gas turbine electronic card

The final application image is generated as a two step process. 1 Select the Project.Build All command in the Project menu to compile and link the application for the custom node being developed; and 2 Select the Export button in the application node Node Specs window. PROMs are programmed using a Neuron ROM image (.NRI extension). Flash memory is initially programmed using the Neuron EEPROM/Flash image (.NEI extension). Warning: When programming flash memory, the part must be explicitly secured with Software Data Protection (SDP) enabled by the PROM programmer. If this feature is not supported by the PROM programmer, the program memory may become corrupted.

NodeBuilder Development Tool

 Please refer to the NodeBuilder User’s Guide for detailed instructions on how to develop nodes. The NodeBuilder software requires specific information about the target control module to create ROM or flash application memory images. Although the definition procedures are somewhat different, the same information is needed for LonBuilder and NodeBuilder tools. The twisted pair control modules use Echelon standard transceivers. As shipped, the NodeBuilder software makes available standard transceiver definitions for the TP/XF-78, TP/XF1250, and TP/FT-10 twisted pair channels. Definitions for the TP-RS485 channel may not be visible without modifying the file NODEBLDR.INI found in the C:\WINDOWS directory.

The NodeBuilder software uses device template

 files to represent target device hardware configuration information. Tables 12 and 13 show the values required for the twisted pair control modules for each tab dialog box in the NodeBuilder device template editor. Included with NodeBuilder are template files for some of the control modules. Where possible, the names for existing template files are referenced in tables 12 and 13. Device templates must be created using the NodeBuilder device template editor for modules which are not already defined
