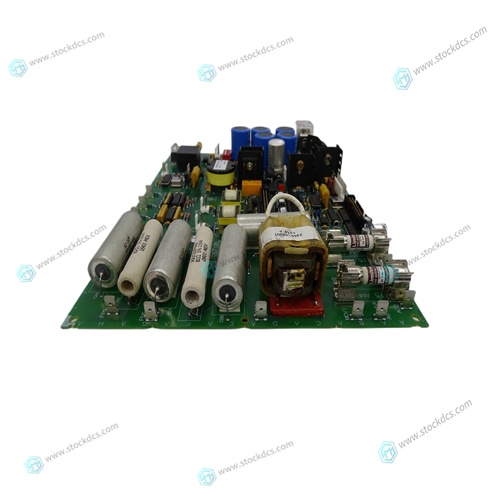

GE DS200SDCCIAGD Gas turbine contact module

Exit Dolfi. È If the number of backed up parameters has changed, then "PL" appears on the display. (If errors are pending, then clear these first.) If the S1 key is now pressed, then all backed up parameters are reset to their default values. "C8 load default parameters" appears for this duration on the display. If the command "C8 load default parameter" has been started, the motor replaced, then upon progression from phase 3 to 4 "UL" appears on the display. S1 must now be pressed or the command to clear the error started. The controller default values are now loaded out of the motor feedback into the controller.   Load the desired parameter file.

Backlash compensation

 Parameter S-0-0058, Reversal clearance has been added. The value of this parameter is either added or subtracted to the actual position value as a correction value in the event that the motional direction is changed. This makes it possible to compensate the disruptive effects of a static part (e.g., in a gear). Whether the parameter is active or not is displayed in parameter P-0-0401, Pos. corr., active correction value. Frictional torque compensation With the help of parameter S-0-0155, Friction compensation the user can parametrize a torque that is locked into in the event that the drive changes direction in order to compensate a torque.

Selecting a linear

cubic position command value interpolator in position control The firmware is outfitted with a cubic position command value interpolator in addition to the linear one. The interpolator can be switched in parameter P-0-0187, Position command processing mode. With linear position command value interpolation the position command values from the control are given one NC cycle later at the position controller. The velocity and acceleration pre-controls can change during the course of an NC cycle. With a cubic interpolator, the transmitted position command values are at the position controller two NC cycles later. Cubic interpolation can cause the velocity and acceleration pre-control to change in every position controller cycle.

 Company product range

----------------------Ruichang Mingsheng Automation Equipment Co., Ltd----------------------

PLC module, programmable controller, CPU module, IO module, DO module, AI module, DI module

Network communication module,

Ethernet module, motion control module, analog input module, analog output module, digital input module, digital output

Module, redundancy module, power module, relay output module, relay input module, processor module
