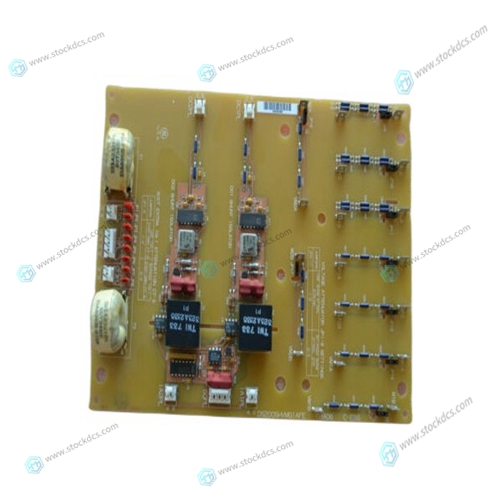

GE DS200SHVMG1AFE Channel isolation card

GE DS200SHVMG1AFE is a type of digital voltage regulator, also known as an excitation system, that is manufactured by GE Energy Connections. This regulator is designed to provide precise voltage regulation for synchronous generators in power plants, ensuring that the generator produces electricity at a stable voltage level.

Some of the key features of the GE DS200SHVMG1AFE voltage regulator include a digital design for high precision, advanced control algorithms for improved stability, and a user-friendly interface for easy operation and monitoring. Additionally, the regulator is built with rugged components to withstand harsh environmental conditions and ensure long-term reliability.

DS200SHVMG1AFE is a high-voltage M-type framework interface board designed by General Electric (GE). This card can be used in a range of GE branded drives and exciters. An interface medium is provided when installing this board. This interface board creates communication between the SCR bridge, power board (DCF or SDCI), and power connection card (PCCA) of the M-type drive. When installing this board, it provides signal conversion and electrical functions. This cartoon converts the shunt signal from -500 to 500 mV into a differential frequency output between 0 and 500 kHz to perform these conversions. These conversions are performed by DC positive and negative shunts on the voltage controlled oscillator (VCO) circuit. Then send the newly converted digital signal to the power board and power connection card. The AC line current integrates a 10:1 current transformer attenuation. Users can choose the desired attenuation by configuring one of the 17 jumpers. The installation parameters provided for DS200SHVMG1AFE should meet the requirements to ensure the safety of users and devices.

Overall, the GE DS200SHVMG1AFE is a high-quality and reliable voltage regulator that is commonly used in power generation applications around the world.
