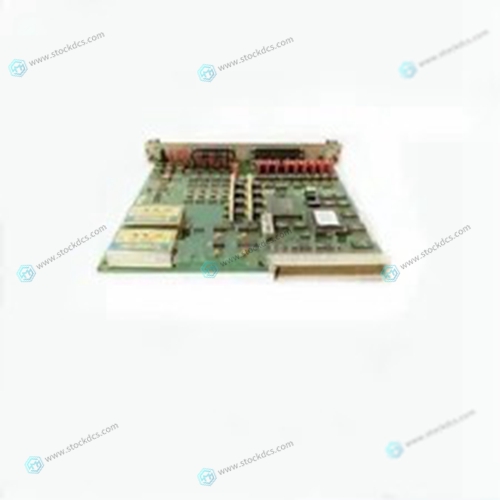

GE DS200FCRLG1A Input expansion card

When the motors are first distributed, the parameter for absolute control emulation is purposely invalid to ensure that the "Set Absolute Measurement Emulator Command" will be executed after a motor is exchanged. Cause: The SSI emulation was selected. The parameters required for emulation are invalid. Remedy: Connect the control drive to a PC and activate DriveTop. "Actual Position Output" menu with controller emulation type "Absolute Controller Emulation (SSI)":

• Describe "Homing Position/Offset"

• Select "Absolute Control Directional Counter"

Invalid data was found while processing the parameters stored in the motor feedback. Causes: 1. Motor feedback cable not connected or it is defective 2. Defective motor feedback 3. Drive controller defective

Invalid Amplifier Data

During the installation of the drive, data from the drive controller will be processed for drive identification. If invalid data is detected, this error message will be displayed.The display format of the position data can be set with the help of the scaling parameter. The internal drive format of the position data is dependent on the applied feedback and the controller resolution. The factor for the conversion of the position data from the internal drive format into the display format or the reverse conversion is outside of the workable area because either: • Rotary motor and linear positional scaling are not representable or • the average factor for conversion of the position data from the display format into the internal format (or reverse process) is not representable.

Connect the drive with a PC and start DriveTop.

In the dialog box „Scaling/Mechanical system" select a scaling setting. Should another scaling installation other than one from DriveTop be used, then the following parameters must be checked.The command "S-0-0148, Drive Controlled Homing Procedure" was activated via the connected control system. The control drive automatically performs the internal drive homing procedure. Give the drive a start command to do this. Prior to this the drive must be enabled and in motion.The command for erasing errors, "S-0-0099, Reset Class 1 Diagnostics" was activated via the connected control system. All internal drive errors are erased. However, the errors must have been previously corrected.

Common problem

We have this product in stock, and we can deliver it to you at any time when you need it badly.

*The warranty period of all products is 1 year, which has passed the professional test certification.

*If you need to order more than one product, please contact us, and we can offer you a discount.

*We only use HDL  UPS  and other express delivery methods to deliver spare parts.

*If you find that other suppliers offer lower prices for the same products, we are also willing to offer you further discounts based on their prices.

If you have any other questions, please feel free to contact us via email.

*Please let us know if you need any spare parts, we can give you further assistance, and we are waiting for your inquiry.
