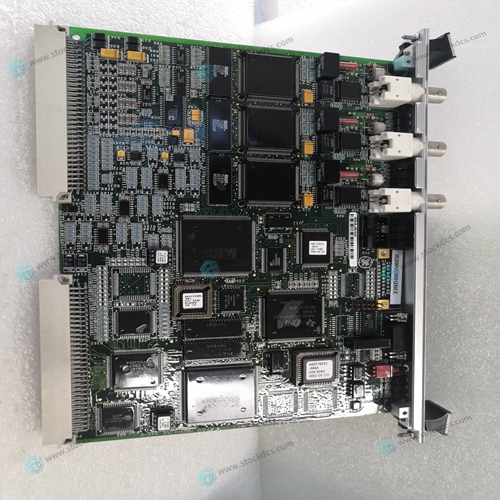

GE IS200EACFG2ABB DC output card

Applicable cables • Use AWG26 ~ 16 for connection with input.

• Tighten the terminals to a torque of 0.5 ~ 0.6 Nxm. Do not tighten terminal screws exceeding the specified torque. Failure to do so may cause equipment failures or malfunctions.

When using a different type of cable, defective contact at the terminal is possible. Use a crimp terminal to achieve a good contact.

Analog amount (0 ~ 10V, 4 ~ 20mA) input to each channel is stored in data registers (D8112, D8113) as digital values. The values are stored automatically at each END instruction and calculated using the analog to digital conversion characteristic, specified with special auxiliary relays M8112 and M8113.

Basic Example Program

Note: • Drive M8112 and M8113 which specifies the analog to digital conversion characteristic with M8000 (“a” type contact of the RUN monitor) or M8001 (“b” type contact of the RUN monitor). Do not change the ON/OFF state while the analog to digital conversion is operating. The analog to digital conversion is not executed correctly when M8112 or M8113 are turned ON and OFF during the conversion process. • Do not change the digital value of D8112 or D8113 after A/D conversion in the 2AD, by manipulating the user program, a programming tool, or GOT (graphic operation terminal), etc. The following program example sets Ch1 in the voltage input mode, Ch2 in the current input mode, with the A/D converted digital value of each channel stored in D0 and D1.

Example Application Program

As the 2AD does not have Offset and Gain capabilities, if values are required outside the standard specification range, additional program commands are required to either multiply or divide the conversion values. For an example application, please see FX programming manual II. Note: • Accuracy and resolution of the analog to digital conversion are different from the specification because the additional program commands. • The original range of the analog input is not changed.

Common problem

We have this product in stock, and we can deliver it to you at any time when you need it badly.

*The warranty period of all products is 1 year, which has passed the professional test certification.

*If you need to order more than one product, please contact us, and we can offer you a discount.

*We only use HDL  UPS  and other express delivery methods to deliver spare parts.

*If you find that other suppliers offer lower prices for the same products, we are also willing to offer you further discounts based on their prices.

If you have any other questions, please feel free to contact us via email.

*Please let us know if you need any spare parts, we can give you further assistance, and we are waiting for your inquiry.
