The main products

Spare parts spare parts, the DCS control system of PLC system and the robot system spare parts,

Brand advantage: Allen Bradley, BentlyNevada, ABB, Emerson Ovation, Honeywell DCS, Rockwell ICS Triplex, FOXBORO, Schneider PLC, GE Fanuc, Motorola, HIMA, TRICONEX, Prosoft etc. Various kinds of imported industrial parts

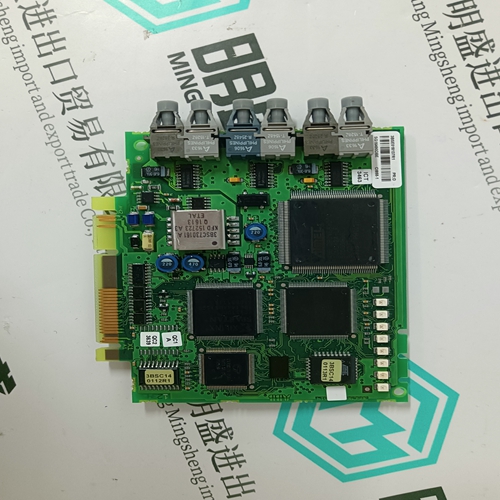

CI858-1 3BSE018137R1 Control card

The DURATION is the length of time of the disturbance. If the disturbance is either a sag or a swell the duration will be recorded in cycles with a maximum possible value of 1 minute (3600 cycles at 60Hz). The VOLTAGE LEVEL represents the average level in volts for the disturbance. Note The voltage disturbance recorder is independent from the event recorder. The alarm events will record normally as per the conditions set within the S4 ALARMS ÖØ CONTROL settings menu, regardless whether the voltage disturbance recorder is enabled or of the sag/swell level. If an undervoltage/overvoltage alarm occurs, it is immediately recorded as an event (if enabled). On the other hand, the voltage disturbance is recorded, if enabled, once the voltage level returns to nominal and the condition is complete. As a result, the time recorded in the event recorder is the start time of the alarm condition, while the time recorded in the disturbance recorder is the end time of the condition.

Product Info

Product software revision information is contained in these messages. • MAIN PROGRAM VERSION: When referring to documentation or requesting technical assistance from the factory, record the MAIN PROGRAM VERSION. This value identifies the firmware installed internally in the flash memory. The title page of this instruction manual states the main program revision code for which the manual is written. There may be differences in the product and manual if the revision codes do not match. • BOOT PROGRAM VERSION: This identifies the firmware installed internally in the memory of the PQMII. This does not affect the functionality of the PQMII.

Product identification information is contained in these messages. • ORDER CODE: This indicates which features were ordered with this PQMII. T = Transducer option (T20 = 4-20 mA, T1 = 0-1 mA Analog Outputs), C = Control option, A = Power Analysis option. • CPU SPEED: Newer hardware revisions support the 25 MHz CPU speed, while older revisions only support 16 MHz. Certain features are only available on the 25 MHz platform (such as the Voltage Disturbance Recorder). • MOD NUMBER(S): If unique features have been installed for special customer orders, the MOD NUMBER will be used by factory personnel to identify the matching product
