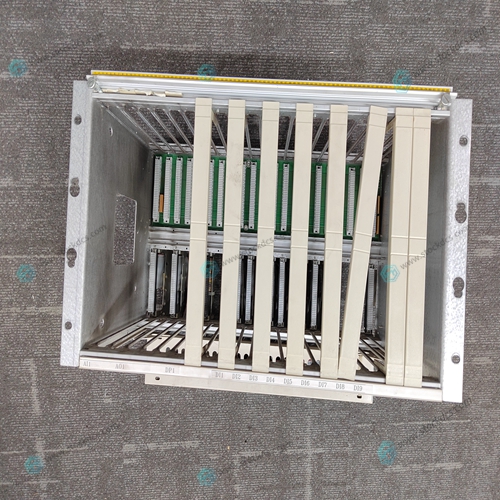

ABB 57310255-A DSRF 150 DCS framework

Functions and features:

Distributed Control System (DCS) Support: The DSRF 150 framework is one of the key components used in the ABB DCS system, providing the infrastructure and functionality of the distributed control system.

System integration: The DSRF 150 framework can seamlessly integrate with other components of ABB DCS systems, such as controllers, input/output modules, communication modules, etc.

Scalability: This framework has good scalability and can add or expand other devices and modules according to actual needs.

High reliability: ABB products typically have high reliability and stability, and the DSRF 150 framework is no exception, providing reliable operation and data processing.

Data processing and communication: This framework can process and transmit a large amount of real-time data, supporting communication with other devices, systems, and networks.

matters needing attention:

Installation: Ensure correct installation and connection according to the installation guidelines provided by ABB. Follow the correct electrical and mechanical installation procedures to ensure the stability and safety of the framework.

Power supply requirements: Carefully read the product manual to understand the power requirements and rated voltage range of the framework. Ensure that a stable power supply is provided to the frame and comply with Electrical safety regulations.

Environmental conditions: Ensure that the frame is installed under suitable environmental conditions. Pay attention to environmental factors such as temperature, humidity, and dust to maintain the normal operation and reliability of the framework.

Connection and configuration: Correctly connect the framework to other devices and make appropriate configurations as needed. Follow the connection diagrams and configuration guidelines provided by ABB to ensure correct signal transmission and system integration.

Maintenance and upkeep: Regular maintenance and upkeep, including cleaning, tightening connections, inspecting cables and plugs, etc. Follow the maintenance manual and recommendations provided by ABB to extend the service life of the framework and ensure its performance.

Safe operation: During the operation process, comply with relevant safety operation regulations and standards. Avoid situations such as misoperation, overload, and short circuit to prevent damage to the framework and the occurrence of dangerous events.
