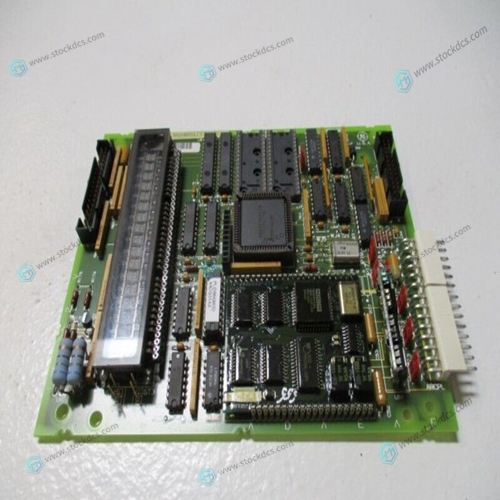

GE DS200PTBAG1AEC processor module

Record the module type, revision and serial number of the module before installation. To install the module: 1. Ensure that the field cable assembly is installed and correctly located. 2. Release the ejector tabs on the module using the release key. Ensure that the ejector tabs are fully open. 3. Holding the ejectors, carefully insert the module into the intended slot. 4. Push the module fully home by pressing on the top and bottom of the module fascia. 5. Close the module ejectors, ensuring that they click into their locked position. The module should mount into the chassis with a minimum of resistance. If the module does not mount easily, do not force it. Remove the module and check it for bent or damaged pins. If the pins have not been damaged, try reinstalling the module.

External I/O Connector

This connector provides a number of discrete input and outputs. These provide the CI with the Serial and Ethernet connections. The connector is a 78+2-way DIN 41612 M-type connector. See Table 3 for connector pin-out details.This port operates at 19200 baud on RS232. A command line diagnostic protocol is available via this port, accessed using a TC-304-01 Maintenance Cable and a terminal program. This protocol is not affected by the Processor Front Panel keyswitch.

TrustedModule Polarisation/Keying.

 All Trusted modules have been keyed to prevent insertion into the wrong position within a chassis. The polarisation comprises two parts: the module and the associated field cable. Each module type has been keyed during manufacture. The organisation responsible for the integration of the system must key the cable by removing the keying pieces from the cable so that they correspond with the bungs fitted to the associated module prior to fitting.
