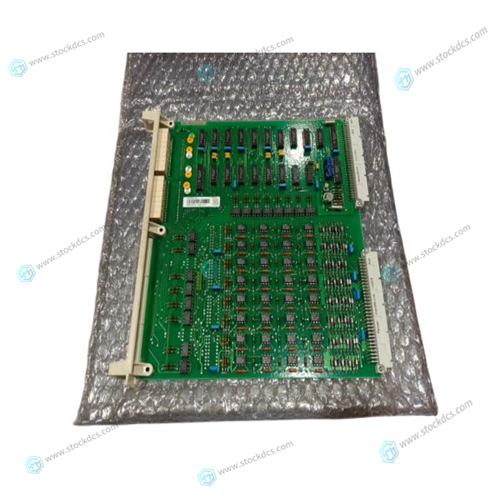

ABB 57160001-NF DSDO 115 Channel isolation module

The following illustration shows the jumper configurations for the various RS interfaces. If you are using an interface other than RS-232 (default), you must change the jumpers as shown: The Setup Jumper acts as "write protection" for the module's flash memory. In "write protected" mode, the Setup pins are not connected, and the module's firmware cannot be overwritten. Do not jumper the Setup pins together unless you are directed to do so by ProSoft Technical Support.

After you have checked the placement of the jumpers, insert MVI71-103M into the PLC™ chassis. Use the same technique recommended by Rockwell Automation to remove and install PLC modules.

Install the Module in the Rack

If you have not already installed and configured your PLC processor and power supply, please do so before installing the MVI71-103M module. Refer to your Rockwell Automation product documentation for installation instructions. Warning: You must follow all safety instructions when installing this or any other electronic devices. Failure to follow safety procedures could result in damage to hardware or data, or even serious injury or death to personnel. Refer to the documentation for each device you plan to connect to verify that suitable safety procedures are in place before installing or servicing the device.

This module is not hot-swappable!

Always remove power from the rack before inserting or removing this module, or damage may result to the module, the processor, or other connected devices. 1 Turn power OFF. 2 Align the module with the top and bottom guides, and slide it into the rack until the module is firmly against the backplane connecto With a firm but steady push, snap the module into place. 4 Check that the holding clips on the top and bottom of the module are securely in the locking holes of the rack. 5 Make a note of the slot location. You will need to identify the slot in which the module is installed in order for the sample program to work correctly. Slot numbers are identified on the green circuit board (backplane) of the PLC rack. 6 Turn power ON. Note: If you insert the module improperly, the system may stop working, or may behave unpredictably.

Quality assurance service

1. We provide high-quality parts of various brands, and you will find full

The model meets your needs.

2. For models that have been out of production for many years, we have all hard to find parts, so we can directly find us to solve all problems for you at one time.

3. If you are in a hurry to use this product, we can dispatch it for you.

4. All products can enjoy a one-year warranty service,

5. Our products are new and unused.

6. If you need a large quantity, you can contact us and I can offer you a discount.

7. You can ask me about the price and more information about the product via email. We welcome you
