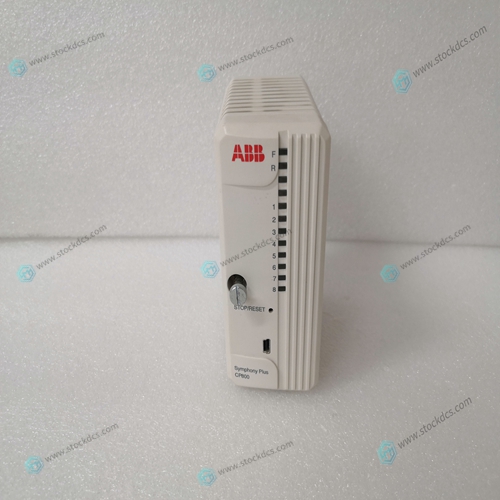

ABB CP800 processor module

The Busy/Idle message indicates the current activity state of the module. "Idle" means it is waiting to execute a command. "Busy" means it is executing a command and is waiting for the response to the request. This does not include the normal class 1 and 2 polls as these are automatically generated. The counter data displays the number of memory areas allocated for the application layer. When no packets are pending, the counts should all be 0. If messages are waiting to be sent, the applRec count will indicate the number waiting to be sent. If many messages are received at the same time, the applRec count will indicate the number of packets that must be processed. The "anything" count indicates any other buffer area that is allocated and must be processed by the application.

Opening the IEC-870-Master

 Command List Menu Press [I] from the IEC-103 Master Driver Menu to open the ICE-870 Master Command List menu. Use this command to view the configured command list for the module.For more information about the commands on this menu, refer to IEC-870- Master Command List Menu (page 43). Opening the Port Configuration Menu Press [P] from the IEC-103 Master Driver Menu to open the Port Configuration menu. Use this command to view the port configuration information for each of the application ports.The Port Configuration Menu section has more information about the commands on this menu.

Opening the Port Status Menu

Press [Q] from the IEC-103 Master Driver Menu to open the Port Status menu. Use this command to verify the status of the master commands sent through the port. If the display indicates a communication error, you should compare the generated error code with the command error codes listed in the Appendices of this manual.Opening the Session Configuration Menu Press [S] to open the Session Configuration menu. Use this command to view the session configuration data. Refer to Session Configuration Menu (page 51) for more information about the commands on this menu.
