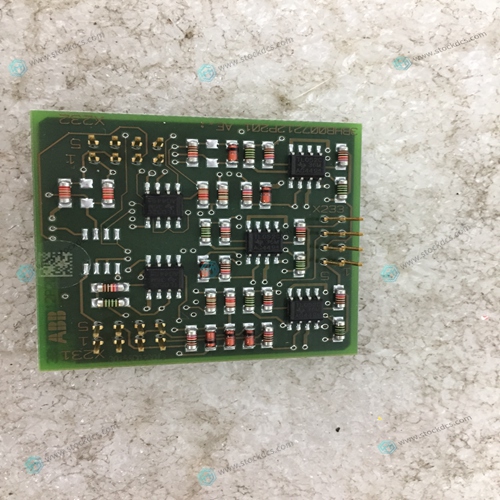

ABB 3BHB015129R0003 Output electronic card

The value from module’s database utilized to build the command. The Qualifier Parameter used with this command is determined by summing the options from lists that follow: Kind of parameter:
0=Not used
1=Threshold value
2=Smoothing factor (filter time constant)
3=Low limit for transmission of measured values
3=High limit for transmission of measured values
5 to 31 = Reserved by standard
32 to 63 = Reserved for special use (private range) Local parameter change:
0=No change
64=Change Parameter in operation:
0=Operation
128=Not in operation

Parameter Activation

The format of this field for the Parameter Activation (113) is as follows:No database value used with the construction of this command. The Qualifier Parameter used with the command is determined by summing the options from the lists that follow: Parameter Qualifier:
0=Not used
1=Act/Deact of previously loaded parameters (point index = 0)
2=Act/Deact of the parameter of the point index specified
3=Act/Deact of persistent cyclic or periodic transmission of the addressed object
4 to 127 = Reserved by standard
128 to 255 = Reserved for special use (private range)

BCD Integrated Setpoint

The value in database is utilized for this command . The data resides in a 6-byte data area in the module. The Qualifier Parameter used with this command is selected from the following list:
0=Direct execution without select
1=Select executed followed by execute
2=Deselect command This parameter specifies the maximum number of sessions to establish on the module. This corresponds to the number of slaves to be interfaced with the module. This value represents the total number of slaves on all ports.
