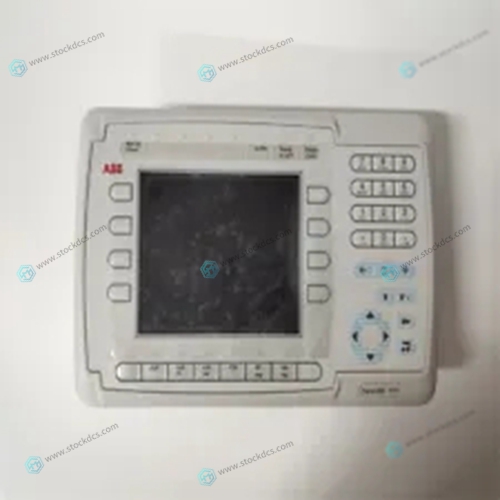

  • ABB PP826 3BSE042244R1 Touch screen
ABB PP826 3BSE042244R1 Touch screen

ABB PP826 3BSE042244R1 Touch screen

ABB PP826 3BSE042244R1 Touch screen

Transferring the Configuration File to Your PC 1 Connect your PC to the Configuration/Debug port of the module using a terminal program such as HyperTerminal. Press [?] to display the main menu.2 Press [S] (Send Module Configuration). The message "Press Y key to confirm configuration send!" is displayed at the bottom of the screen. 3 Press [Y]. The screen now indicates that the module is ready to send. 4 From the Transfer menu in HyperTerminal, select Receive File. This action opens the Receive File dialog box.5 Use the Browse button to choose a folder on your computer to save the file. ƒ Note: ProSoft Technology suggests that you upload the configuration file pre-loaded on your module. However, configuration files are also available on the ProSoft CD as well as the ProSoft Technology web site at www.prosoft-technology.com. 6 Select Ymodem as the receiving protocol. 7 Click the Receive button. This action opens the Ymodem File Receive dialog box, showing the progress of your file transfer.

Transferring the Configuration File to the Module

Perform the following steps to transfer a configuration file from your PC to the module. 1 Connect your PC to the Configuration/Debug port of the module using a terminal program such as HyperTerminal. Press [?] to display the main menu. 2 Press [R] (Receive Module Configuration). The message "Press Y key to confirm configuration receive!" is displayed at the bottom of the screen.When the file transfer is complete, the module’s configuration/debug screen indicates that the module has reloaded program values, and displays information about the module.The module provides information on diagnostics and troubleshooting in the following forms: ƒ Status data values are transferred from the module to the processor ƒ Data contained in the module can be viewed through the Configuration/Debug port attached to a terminal emulator ƒ LED status indicators on the front of the module provide information on the module’s status

The Configuration/Debug Menu

The Configuration and Debug menu for this module is arranged as a tree structure, with the Main Menu at the top of the tree, and one or more sub-menus for each menu command. The first menu you see when you connect to the module is the Main menu. Because this is a text-based menu system, you enter commands by typing the command letter from your computer keyboard in the terminal application (for example, HyperTerminal). The module does not respond to mouse movements or clicks. The command executes as soon as you press the command letter — you do not need to press [Enter]. When you type a command letter, a new screen will be displayed in your terminal application



 Brand display

 ABBGE/FUANCFOXBOROTRICONEX BENTLYA-BEMERSON MOTOROLAXYVOMHONEYWELL REXROTHKUKANIDEIFYokogawaWOODWARDReliance ElectricSCHNEIDER MOOGPROSOFTKOLLMORGENICS TRIPLEXHIMA。

Obtain the latest price of ABB PP826 3BSE042244R1 Touch screen
