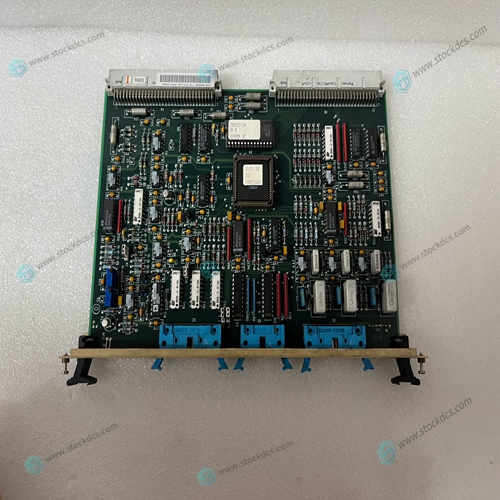

ABB SCYC51020 58052582G Ladder control card

The positions of the retaining brackets depend on:

 the size of the device and  the mounting requirements. 10.4" and 12.1" devices which must be mounted in accordance with IP65 or used in potentially explosive atmospheres:

 Top and bottom of the device: One retaining bracket at each of the fixing positions (left, right and in the center)

 Left and right on the device: One retaining bracket each at the central fixing position

 15" devices (standard mounting):  Top and bottom of the device: One retaining bracket each at the second fixing position from the left and from the right

Sensitive resistive touch

surface Damage to the resistive touch due to the use of pointed or sharp objects.  Only activate the resistive touch with your finger or a stylus.  When wearing gloves, ensure that these are clean. They must not be covered with abrasive dust or sharp particles. CAUTION Device condensation If the device is or was exposed to climatic changes (temperature fluctuation, air humidity) moisture can form on or in the device (device condensation). In this case, there is a risk of short-circuit.  The device must not be switched on when device condensation is present.  If condensation is present on the device, or if it was exposed to temperature fluctuations, it must be allowed to adjust to room temperature (do not expose the device to the direct heat of heating devices) prior to commissioning.

Insert the CF card with the operating system:

During a write operation, the CF card may lose data or may be destroyed if it is removed or if there is a power failure.  Always secure CF cards with the CF slot cover.  Avoid write operations to CF cards. Reasons: - The number of write cycles possible on CF cards is limited. - A power failure during write operations will most likely lead to loss of data.  Before removing the CF card in CF slot 1, ensure that no software write operations to the CF card are in progress («CF ACT» LED must not be lit).  Only remove the CF card from CF slot 0 when the device is in a de-energized state.  Before switching off, ensure that no software write operations to the CF card are in progress («CF ACT» LED must not be lit).
