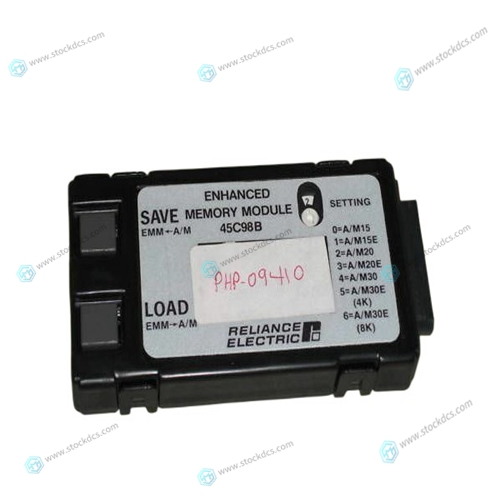

RELIANCE 45C98B I/O bus module

If the shipping carton is damaged upon receipt, request that the carrier's agent be present during unpacking and inspection of the equipment. Unpack the equipment from the shipping carton. Refer to the packing list and verify that all items are present. Save the packing material for storing and reshipping of the equipment. !  Avoid touching areas of integrated circuitry; static discharge can damage circuits.

Overview of Startup Procedure The following list identifies the things you will need to do before you can use this board, and where to find the information you need to perform each step. Be sure to read this chapter and all Caution notes, and have the related documentation with you before you begin.

Preparing the Hardware

This section covers:

❏ Modifying hardware configurations before installation

❏ Checking the 187Bug EPROMs

❏ Factory jumper settings

❏ Preparing your MVME187 ❏ Preparing the system chassis

To select the desired configuration and ensure proper operation of the MVME187, certain option modifications may be necessary before installation. The location of the switches, jumper headers, connectors, and LED indicators on the MVME187 is illustrated in Figure 3-1.

Option Modification

The MVME187 has provisions for option modification via:

❏ Software control for most options

❏ Jumper settings on headers for some options

❏ Bit settings in control registers after installation for most other options – Control registers are described in the Single Board Computer Programmer's Reference Guide as listed in Related Documentation in Chapter 1 of this manual.
