SST SST-PB3-VME-1 Communication module

SST SST-PB3-VME-1 Communication module

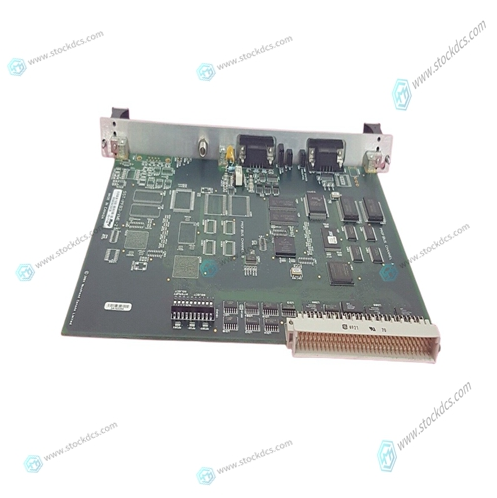

SST-PB3-VME-1 is a high-speed digital signal processor board on the VME bus. Its main function is to conduct real-time signal acquisition, processing, storage and transmission. It can be widely used in radar, radio signal processing, medical imaging, particle physics experiments and other fields.

The following are the main configuration instructions and features of the board:

Processor: Xilinx Virtex-5 FX70T FPGA, with a programmable logic unit count of 211200.

Storage: The internal memory of the board includes 1GB DDR2 SDRAM and 128MB QDRII SRAM, and supports 4GB CompactFlash storage cards.

Input/Output: The board provides four high-speed digital signal acquisition channels for real-time signal acquisition and digital signal processing; Simultaneously provide 4 digital signal output channels and 4 analog output channels, which can output processed data signals.

Interface: The board supports VME64x bus interface and PCI Express interface.

Software: The board is equipped with rich software development tools and libraries, including VxWorks, Linux, MATLAB, and LabVIEW, making it convenient for users to develop and apply.

Application field: This board is suitable for fields that require high-speed and real-time digital signal processing, such as:

Radar signal processing: can be used for radar signal acquisition, filtering, demodulation, and target recognition processing.

Radio signal processing: It can be used for demodulation, decoding, and signal analysis of communication signals.

Medical imaging: It can be used for the collection, reconstruction, filtering, and image processing of medical images.

Particle physics experiment: it can be used for data collection, processing and analysis of particle detector.

Related products：

NI PXI-8115 controller

NI PXI-8101 PXI controller

NI PXI-6259 PXI multi-function I/O module
