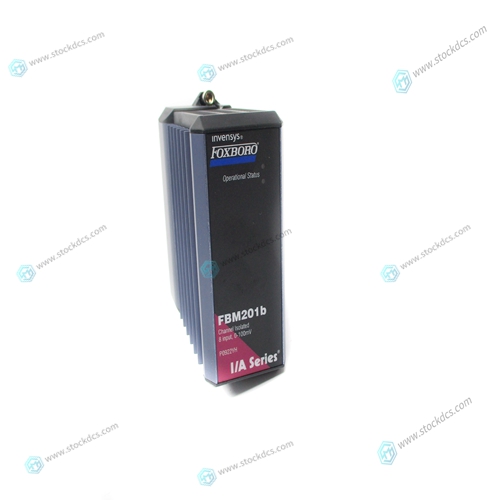

FOXBORO FBM201b P0922YH Channel output card

Asynchronous Serial Ports Port 1 • Controller: MPC864xD Duart (second port N/C) • Number of Ports: One 16550 compatible • Configuration: RS-232 DTE (RxD, TxD, RTS, CTS)

• Async Baud Rate, bps max.: 38.4 K RS-232, 115 Kbps raw • Connector: One front panel Mini DB-9

• Mini DB-9 to DB-9 adapter cable: SERIAL-MINI-D2 Ports 2-5 • Controller: Exar ST16C544D Quart

• Number of Ports: Four 16550 compatible

• Configuration: RS-232 (RxD, TxD, RTS, CTS) • Async Baud Rate, b/s max: 38.4 K RS-232, 115 Kbps raw

• Connector: Via VMEbus P2 connector, pinout matching MVME7216E RTM

This manual provides general information

hardware preparation, installation instructions, and support information for the MVME712A, AM, -12, -13, and B Transition Modules, as well as the LCP2 Adapter Board. The next table defines the references you will see throughout the manual.The MVME712x modules are used as the interface between MVME1xx family VMEmodules (such as the MVME167 and MVME197) and their internally connected SCSI peripheral devices. The MVME712B is designed to be used only in conjunction with an MVME712x board for external SCSI and/or Ethernet connections. An LCP2 adapter module and a cable are supplied for interconnection between the MVME712 family module and the MVME1xx family VMEmodule.

Features of the MVME712 Family Modules

The features of the MVME712 family modules include:

❏ Four 9-pin multiprotocol EIA-232D serial ports (through the LCP2 adapter) (MVME712x) ❏ One independent printer port (through the LCP2 adapter) (MVME712x)

❏ Small Computer Systems Interface (SCSI) shielded connector bus interface (through the LCP2 adapter) for connection to external devices (MVME712B)

❏ External Ethernet interface (through the LCP2 adapter) (MVME712B)

❏ Built-in modem (refer to Appendix A) with front panel Telco modular jack (MVME712-13 and MVME712AM) ❏ Electrostatic Discharge (ESD) protection on front panel ❏ Radio Frequency Interference (RFI) protection on front panel

product application

Products are widely used in metallurgy, petroleum, glass, aluminum manufacturing, petrochemical industry, coal mine, papermaking, printing, textile printing and dyeing, mechanical, electronic manufacturing, automobile manufacturing, plastic machinery, electric power, water conservancy, water treatment/environmental protection, boiler heating, energy, power transmission and distribution and so on
