The main products

Spare parts spare parts, the DCS control system of PLC system and the robot system spare parts,

Brand advantage: Allen Bradley, BentlyNevada, ABB, Emerson Ovation, Honeywell DCS, Rockwell ICS Triplex, FOXBORO, Schneider PLC, GE Fanuc, Motorola, HIMA, TRICONEX, Prosoft etc. Various kinds of imported industrial parts

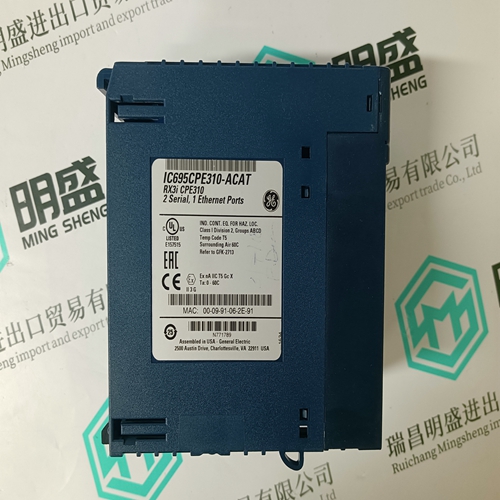

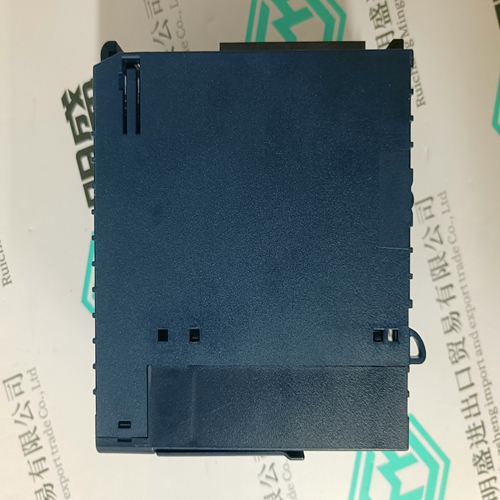

IC695CPE310-ACAT Gas turbine card

Status information about the CI626 is available during download of application to Advant Controller 110 CPU, by reading the error buffer of CPU or via module diagnostics. The latter one is described in documentation of corresponding diagnosis tool. Error that occur during configuration of the CI626 by Advant Controller 110 CPU and those that occur during normal operation are inserted into CPU’s error buffer. The following list contains a summary of those errors

When the PM810 is started and configured, the communication interface is automatically activated. If the CDP configuration for the Advant Fieldbus 100 interface get updated due to adding, changing or deleting a DSP, the current bus master is notified and will update the scan table. All other bus administrators will then receive the updated scan table from the current bus master. 3.2.4.3 Removing a PM810 If an Advant Controller 70 station is to be permanently removed from Advant Fieldbus 100, all configured DSPs must be deleted in all stations on the bus having DSPs configured to or from the affected station. If the DSPs are not deleted, the corresponding CDPs will be kept in the scan tables and thereby occupying valuable bandwidth. As a sending CDP must be deleted from the station by which it is configured, the CDP signal address can not be used by any other station unless the whole bus is restarted. This might also generate errors indicating missed CDP transmission.

Setting the CI810 Operational

The Advant Controller configures and sets the CI810 to operational automatically when the S800 I/O is configured in the database. The own station communication interface must however first has been set to operational by the Advant Controller. For setting up and configuring the S800 I/O station refer to S800 I/O User’s Guide. 3.2.5.3 Removing a CI810 When the CI810 and the S800 I/O system is to be permanently removed, all configured CDP’s must be deleted. This is done by either resetting the IMPL flag or performing a DDB command to the S800 I/O station DB element. Replacing the communication interface with another CI810 communication interface, see Section 5.4.2, In Operation with Error Indications. To remove the S800 I/O station, perform the following steps: • Reset the IMPL terminal or perform a DDB command on the CI810 data base element. • Remove the Advant Fieldbus 100 from the CI810.

The CI810 communication interface is defined in an Advant Controller 110/410/450 and is used to control the S800 I/O station. The CI810 is connected to the Advant Controller via Advant Fieldbus 100. The DB element for the CI810 communication interface is shown in Figure 3-7
