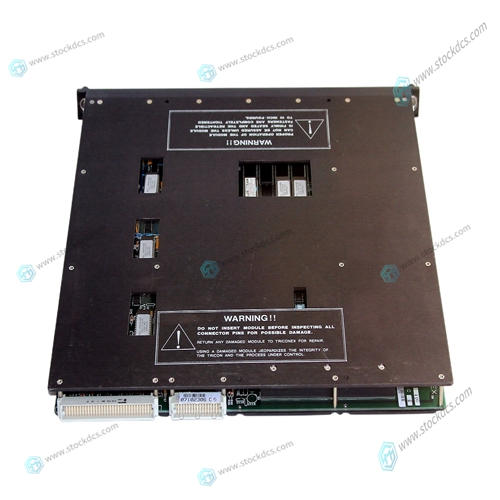

TRICONEX 4107 Embedded module

This bit displays current status of the receive FIFO. This bit should never be low. If this bit goes low, local VME access should be suspended or at least curtailed for a period of time or data loss could occur. This bit going low would be an indication of a local VME problem, i.e., extremely slow release of data strobes after DTACK. In a proper functioning VME system, this should never occur.The MC68153 contains one Interrupt Control Register (ICR) and one Interrupt Vector Register (IVR) for each of the four interrupt sources. All four Control Registers are identical. All four Vector Registers are also identical.

The MC68153 contains eight programmable Read/Write Registers. There are four Control Registers (CRINT0 through CRINT3) that govern operation of the device. The other four (VRINT0 through VRINT3) are Vector Registers that contain the vector data used during an interrupt acknowledge cycle

A value of "zero" in the field disables the interrupt.

 b. Interrupt Enable (IRE) - This field (Bit 4) must be set (high level) to enable the bus interrupt request associated with the Control Register. Thus, if the INTX line is asserted and IRE is cleared, no interrupt request (IRQX) will be asserted. c. Interrupt Auto-Clear (IRAC) - If IRAC (Bit 3) is set , IRE (Bit 4) is cleared during an interrupt acknowledge cycle responding to this request. This action of clearing IRE disables the interrupt request. To re-enable the interrupt associated with this register, IRE must be set again by writing to the Control Register

External/Internal (X/IN)

- Bit 5 of the Control Register determines the response of the MC68153 during an interrupt acknowledge cycle. If the X/IN bit is clear (low level) the BIM will respond with vector data and a DTACK signal, i.e., an internal response, If X/IN is set, the vector is not supplied and no DTACK is given by the BIM, i.e., an external device should respond. Always set to "zero" for the VMIVME-5576. e. Flag (F) - Bit 7 is a flag that can be changed without affecting chip operation. f. Flag Auto-Clear (FAC) - If FAC (Bit 6) is set, the Flag bit is automatically cleared during an interrupt acknowledge cycle.

Superior products

Main products include DCS control system spare parts, PLC system spare parts and robot system spare parts,Advantage brands: Allen Bradley, BentlyNevada, ABB, Emerson Ovation, Honeywell DCS, Rockwell ICS Triplex, B&R, FOXBORO, Schneider PLC, GE Fanuc, Motorola, HIMA, TRICONEX, Prosoft and other imported industrial parts

Application industry

Our main products are widely used in metallurgy, oil and gas, glass manufacturing, aluminum, petrochemical, coal mine, paper making and printing, textile printing and dyeing, machinery, electronic manufacturing, automobile manufacturing, tobacco, plastic machinery, electricity, water conservancy, water treatment/environmental protection, municipal engineering, boiler heating, energy, power transmission and distribution, etc.
