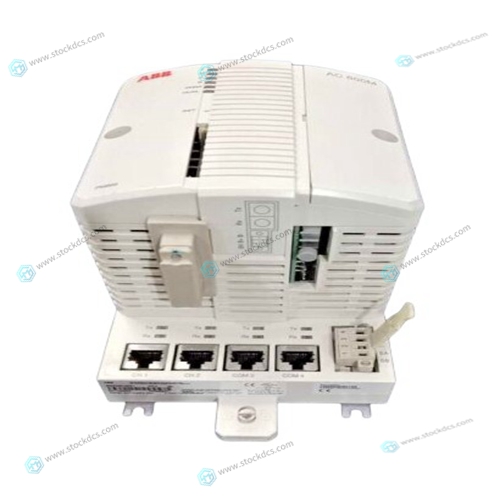

ABB PM866 3BSE050200R1 Output logic module

– The amplifier card may only be plugged in or unpluged when switched off! – Do not use plugs with free wheel diodes or LED displays when connecting the solenoids! – Only carry out measurements on the cards with instruments Ri > 100 kΩ! – Measuring zero (M0) is raised by + 9 V compared to 0 V operating voltage and is not potentially separated , i.e. – 9 V controlled voltage is equivalent to 0 V operating voltage . Therefore do not connect measuring zero (M0) to 0 V operating voltage! – When switching command values use relays with gold contacts (small voltages , small currents)! – When switching card relays only use contacts with a loadability of approx. 40 V, 50 mA! When controlling externally the control voltage may have a maximum residual ripple of 10 %! – Always screen command value lines; connect screen to 0 V operating voltage on the card side, other side remains open (danger of earth loops)!

LED H11 lights up

 when the system is powered up. LED H12 ("Ready for operation") lights up to indicate trouble-free operation as long as: – the internal power supply (± 9 V) is functioning properly – there is no short-circuit in the solenoid lines In the event of a fault, both output stages are immediately deenergized and the signal "Ready for operation" (LED H12) is cancelled. Once the fault has been cleared, the amplifier card is immediately operable and LED H12 lights up again.

Mercury Step controller for 2-phase stepper motors

 1 Axis. Microstep resolution: 1/2048 full step. Open-loop and closed-loop operation. Point-to-point motion, trapezoidal velocity profile. Networkable via daisy chain. Extensive functionality Powerful macro command language. Nonvolatile macro storage, e.g., for stand-alone functionality with autostart macro. Data recorder. ID chip for fast start-up. Parameter changing during operation. Extensive software support, e.g., for LabVIEW, dynamic libraries for Windows and Linux. Interfaces USB and RS-232 for commanding. Differential signal transmission for digital (A/B) encoder signals. TTL inputs for limit and reference point switches. Input for RS-422 signals for index switch. I/O lines (analog/digital) for automation. Interface for analog joystick.

Superior products

Main products include DCS control system spare parts, PLC system spare parts and robot system spare parts,Advantage brands: Allen Bradley, BentlyNevada, ABB, Emerson Ovation, Honeywell DCS, Rockwell ICS Triplex, B&R, FOXBORO, Schneider PLC, GE Fanuc, Motorola, HIMA, TRICONEX, Prosoft and other imported industrial parts

Application industry

Our main products are widely used in metallurgy, oil and gas, glass manufacturing, aluminum, petrochemical, coal mine, paper making and printing, textile printing and dyeing, machinery, electronic manufacturing, automobile manufacturing, tobacco, plastic machinery, electricity, water conservancy, water treatment/environmental protection, municipal engineering, boiler heating, energy, power transmission and distribution, etc.
