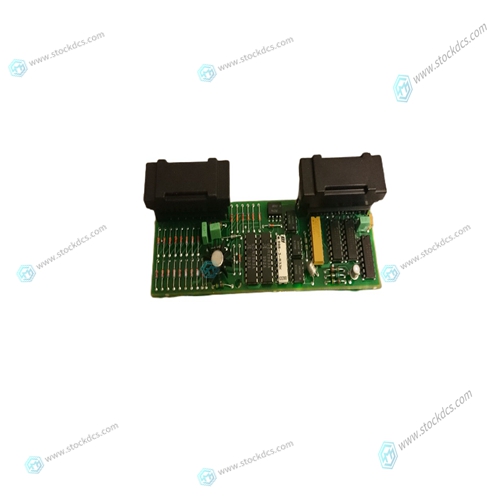

ABB DSDO301 DSDO 301 Switch output module

If the servo amplifier has been stored for longer than 1 year, then the DC bus link capacitors will have to be re-formed. To do this, disconnect all the electrical connections. Supply the servo amplifier for about 30 minutes from single-phase 230VAC to the terminals L1 / L2. This will re-form the capacitors. The adaptation of parameters and the effects on the control loop behavior are described in the Online Help of the setup software.This wiring does not fulfill any requirements to safety or functionality of your application, it just shows the required wiring for drive testing without load.

Unpacking, Mounting and Wiring the Servo Amplifier

 Unpack servo amplifier and accessories. 2. Observe safety instructions in the manuals. 3. Mount the servo amplifier as described in chapter (➜ # 56). 4. Wire the servo amplifier as described in the Instructions Manual or apply the minimum wiring for drive testing as described later in this chapter. 5. Install the software as described below. 6. You need this information concerning the drive components: - rated mains supply voltage, - motor type, motor data (if the motor type is not listed in the motor database, see online help), - feedback unit built into the motor (type, poles, lines, protocol etc.), - moment of inertia of the load.
