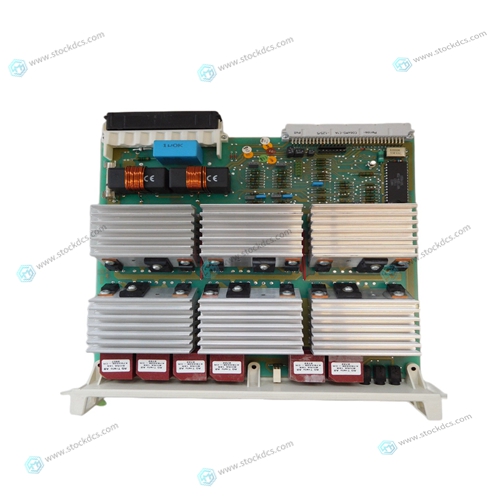

ABB YT213001-BA YTE102A Power AC module

Typical Applications • Automotive test equipment

• Tape dispenser • Remote control of switches, rheostats

• X-Y positioning

• Textile edge guide controls

• Printing press ink pump control, color alignment

• Film handling

• Microfilm scanners • Paper feed • Furnace damper controls • Valve control

• Timing belt drives • Conveyor belt drives • Card positioning

• X-Ray scanning • Antenna rotors • Generators

• Automated welding equipment • Packaging machines, labeling

AC Synchronous Gearmotors

SLO-SYN AC Gearmotors are SLO-SYN Synchronous Motors combined with step-down gearboxes for use where slow shaft speeds or high torque are needed. They feature an in-line gear speed reduction assembly that requires a minimum of space and has the strength needed to handle heavy loads. Ratios from 3:1 to 125:1 are offered. All are rated for 100 pound (45.4 kg) axial loads and 150 pound (68 kg) radial loads, so external supports or bearings are not necessary in most applications.

The sturdy design of the gearmotors

assures a typical operating life of 7 to 10 years. The gearmotors are permanently lubricated and no scheduled maintenance is needed. The output shaft of the gear assembly is slotted to accept a standard Woodruff key for easy and positive coupling to the load. Because of the unique characteristics of the SLOSYN motor and the sturdy gearbox, the AC Gearmotor can serve as the main drive source, as a magnetic clutch, and as a DC operated brake when the motor is at a standstill. These capabilities allow the design engineer to minimize the number of system components by using the AC Gearmotor to perform several functions.
