The main products

Spare parts spare parts, the DCS control system of PLC system and the robot system spare parts,

Brand advantage: Allen Bradley, BentlyNevada, ABB, Emerson Ovation, Honeywell DCS, Rockwell ICS Triplex, FOXBORO, Schneider PLC, GE Fanuc, Motorola, HIMA, TRICONEX, Prosoft etc. Various kinds of imported industrial parts

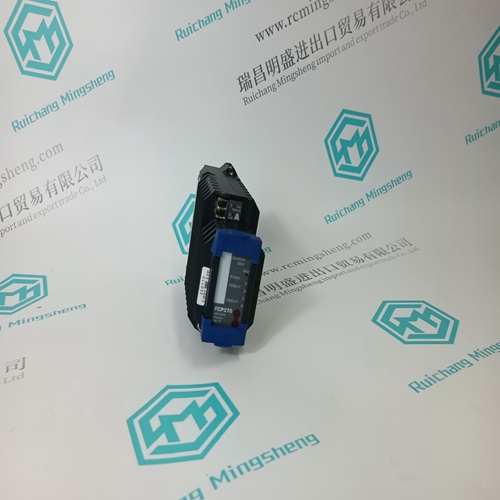

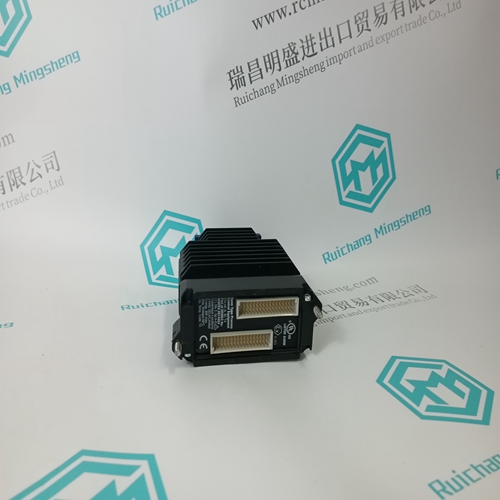

FCP270 P0917YZ The controller

Real Time Clock/Configuration Backup board and Removable Configuration Board (RCB) off-line error codes are listed in Table 11.1. RTC/CB and RCB on-line status codes are located in Table 11.2 and listed as “RCB” errors.

1) Power down and replace Board. 2) Press ENTER to ACK error. Controller will go online using configuration in MPU memory. ERR282 Configuration on Board failed checksum test and is corrupted. 1) Power down and install a Board containing a valid configuration. 2) Press ENTER to ACK error. Controller will go online using configuration in MPU memory that will also be loaded into the Board. ERR284 Configuration on Board is not compatible with MPU Controller board firmware level. This will occur only when the Board comes from a controller with a different MPU Controller board firmware level than the current controller and some functions in the configuration database cannot be supported by the current firmware. 1) Install MPU firmware compatible with the Board configuration 2) Press ENTER to ACK error. Controller will go online using configuration in MPU memory. The configuration will remain intact until a parameter is STOREd, at which time the MPU configuration will be transferred to the Board. ERR285 Configuration on Board is not compatible with MPU Controller board database. This will occur only when the Board comes from a controller with a higher MPU Controller firmware level than the current controller. Controller firmware can convert a database created with a lower firmware revision level but not a higher level. 1) Install MPU firmware compatible with the Board configuration 2) Press ENTER to ACK error. Controller will go online using configuration in MPU memory. The configuration will remain intact until a parameter is STOREd, at which time the MPU configuration will be transferred to the Board.

ON-LINE ERROR CODES AND STATUS CODES

These codes can be produced while the controller is running function block and may be actively controlling a process. Depending on the message and its priority level, user intervention may be required or the message may simply be informational in nature. LIL parameter “SE” located at channel 4, parameter 1 (Modbus register $40002) will reflect unacknowledged error or status messages present in the controller. Messages are displayed according to priority until all active messages have been acknowledged. If no link code has been assigned to the active message, the “SE” code will remain at its last value. Table 11.2 lists on-line error and status codes. For most error codes, replace the involved circuit board to repair the controller. For most status codes, acknowledge or otherwise respond to the situation.

The controller powered down with a Board installed but could not identify it on power up. The board may have been removed or the board ID may be corrupted. 1) Install a Board or new Board. 2) Press ENTER to ACK error. Controller will go online using configuration in MPU memory. ERR288 The LonWorks circuit board currently installed is not compatible with the LonWorks configuration contained on the Board. 1) Power down and install the LonWorks board from the same controller that the Board came from. 2) Press ENTER to ACK error. Controller will go online. Any existing LonWorks network data will be used if it is valid, otherwise, it will be set to default values. In either case, the LonWorks network manager will be required to re-establish the network bindings.
