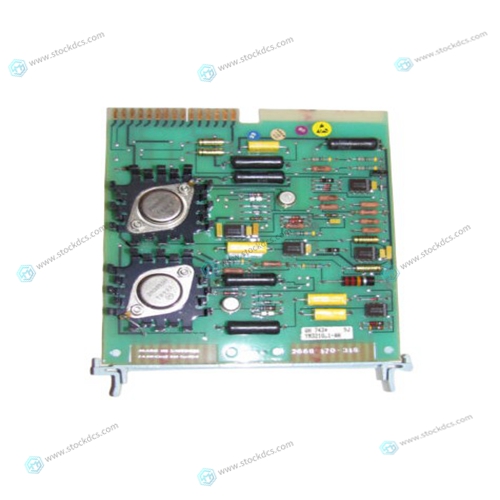

ABB YM322001-EE Adjustment control card

The following options are available for disposal of the device:

 At the end of the device’s life cycle you can return it to the manufacturer for a set fee. The manufacturer will then deal with the recycling of the device.

 Dispose of the device according to regional specificationsDiagnostic Message Types Each operational state of the drive controller will be characterized with a diagnostic message. Therein, it will be differentiated between: • Error diagnostic message

• Warning diagnostic message

• Command diagnostic message

• State diagnostic message • Process states

H1-Display

The H1 condition display on the front side of the DKC gives information about:

• Operating condition of the drive controller

• Drive controller or cable malfunctions

• Motor malfunctions

• Malfunctions caused by invalid parameter input

• Application errors The symoblized diagnostic number appears on this two positional-seven segment display.The form of the display is seen on the diagram "Priority dependent diagnostic message diagram." In addition to the display, it is possible to use the communication interface to quickly monitor the actual process state. The operating mode is not evident from the H1-Display.If the drive is enabled and no command was activated, the symbol "AF" appears on the display

Clear Coded Text-Diagnostic Message

 The clear coded text-diagnostic message contains the diagnositic number followed by the diagnostic text; for example, "excessive output error" (Fig 1-1). It can be read from parameter “S-0-0095, diagnostic message” and serves the direct display of the process state on a operator surface. The clear coded text-diagnostic message will be changed over from the language selection to the current language.If more than one diagnostic message is generated at the same point within the string, the diagnostic with the highest priority will be displayed first. The following graphic shows the order of priority.

Our products

A company specializes in the sales of module spare parts of global famous brands (DCS system) (robot system) (large servo control system). The company's products include distributed control system (DCS), programmable controller (PLC), MOTOROLA MVME industrial module, industrial control communication converter (Anybus), remote output/input module (RTU), industrial computer (IPC), industrial low screen screen (IPC) HMI SCSI (50, 68, 80Pin) AnyBus (Gateway) has become a global sales enterprise of industrial automation spare parts and components

Payment method and delivery

Shipment: EMS,DHL,UPS & FEDEX

Payment: T/T or Western Union
