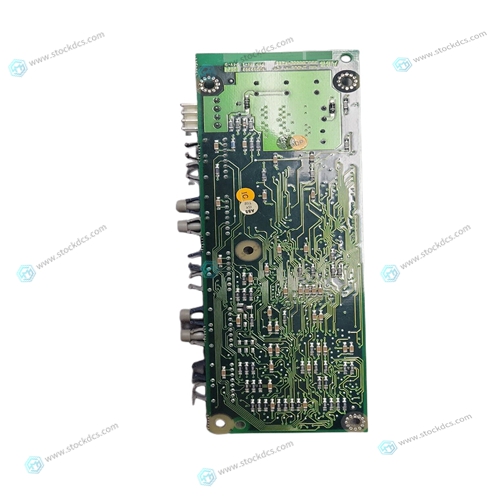

ABB 3BSE004211R1 Control card

The clear coded text-diagnostic message contains the diagnositic number followed by the diagnostic text; for example, "excessive output error" (Fig 1-1). It can be read from parameter “S-0-0095, diagnostic message” and serves the direct display of the process state on a operator surface. The clear coded text-diagnostic message will be changed over from the language selection to the current language.The settings for current regulation, velocity command, and position loop are stored in the feedback of the motor. After powering up, the drive compares the motor type stored in the parameters with the connected motor type. If the two do not match, then the drive remains in this state. By pressing the S1 key, the drive overwrites its stored parameters with the control loop parameters from the motor feedback.

Load Parameter Default Value Description

After the firmware is replaced (EPROMs), if the parameters have been changed in regards to the old product, the drive displays “PL”. By pressing the S1 button on the drive or by starting the command “load basic parameters”, all the parameters will be erased and restored with the default values. Cause: Product was replaced. The number of parameters in comparison to the new products has changed. Remedy: Press S1 button on the drive controller and all the paramters will be erased and restored with default values

Switching to an Uninitialized Operating Mode

Description: A valid operating mode has not been defined. This error cannot occur in the DKC01 because the input of the operating mode will be tested at input. Remedy: Input correct operating mode

Our products

A company specializes in the sales of module spare parts of global famous brands (DCS system) (robot system) (large servo control system). The company's products include distributed control system (DCS), programmable controller (PLC), MOTOROLA MVME industrial module, industrial control communication converter (Anybus), remote output/input module (RTU), industrial computer (IPC), industrial low screen screen (IPC) HMI SCSI (50, 68, 80Pin) AnyBus (Gateway) has become a global sales enterprise of industrial automation spare parts and components

Payment method and delivery

Shipment: EMS,DHL,UPS & FEDEX

Payment: T/T or Western Union
