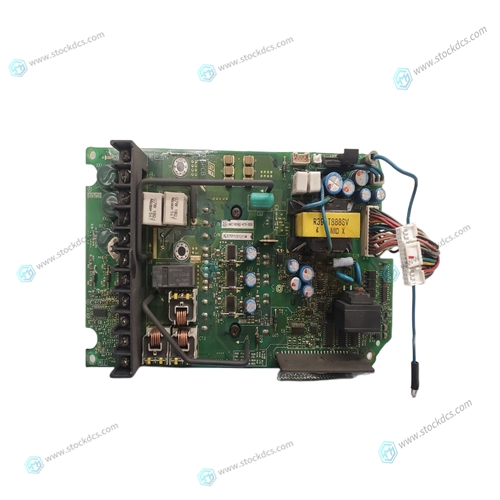

YASKAWA YPHT31611-1C Pulse input card

Only qualified staff with knowledge of mechanical engineering are permitted to assemble the motor. Only staff qualified and trained in electrical engineering are allowed to wire up the motor. The procedure is described as an example. A different method may be appropriate or necessary, depending on the application of the equipment. Warning! Protect the motor from unacceptable stresses. Take care, especially during transport and handling, that components are not bent and that insulation clearances are not altered. Always make sure that the motors are de-energized during assembly and wiring, i.e. No voltage may be switched on for any piece of equipment which is to be connected. Ensure that the switch cabinet remains turned off (barrier, warning signs etc.). The individual voltages will only be turned on again during commissioning

Note!

The ground symbol, which you will find in the wiring diagrams, indicates that you must provide an electrical connection, with as large a surface area as possible, between the unit indicated and the mounting plate in the switch cabinet. This connection is to suppress HF interference and must not be confused with the PE (protective earth) symbol (protective measure to EN 60204). To wire up the motor, use the wiring diagrams in the Installation and Commissioning Instructions of the servo amplifier which is used.

The following notes should help you to carry out the assembly

wiring in an appropriate sequence, without overlooking anything. The site must be free of conductive and aggressive material. For V3-mounting (shaft end upwards), make sure that no liquids can enter the bearings. If an encapsulated assembly is required, please consult our applications department beforehand. Ensure an unhindered ventilation of the motors and observe the permissible ambient and flange temperatures. For ambient temperatures above 40°C please consult our applications department beforehand
