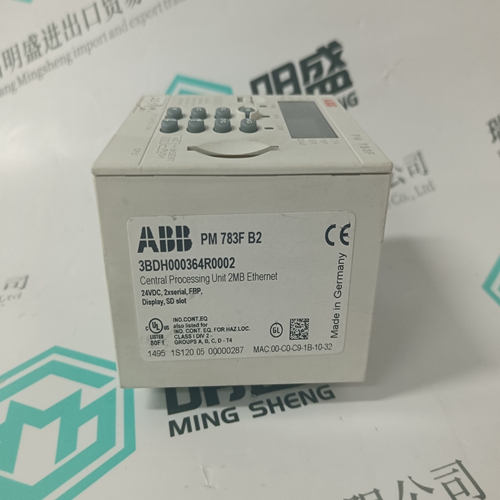

PM783F 3BDH000364R0002 control panel

Time Strobe Fieldbus Baseplate Terminator (RH924ZQ) connects the optional “A” and/or “B” time strobe signals to the standard FCP280 baseplates only. The Time strobe splitter/terminator RH924ZQ is used on only the first standard baseplate containing an FCP280. This terminator also terminates the fieldbus signals. NOTE: The RH924ZQ adapter is not used with the dual cable FCP280 baseplate.Fieldbus Splitter (RH928CV) allows any of the Fieldbus ports on the standard FCP280 baseplates to connect to the twinaxial 268 Kbps fieldbus cables. RH928CV includes both a connector to any of the Fieldbus ports on the FCP280 baseplate, and a termination cable assembly (TCA) termination block similar to two of the P0903VY termination blocks joined together.

The FCP280 has a liquid crystal display (LCD) on its faceplate, which displays various status and identification information: • The first line typically displays the FCP280’s letterbug and role (Primary/Shadow/ Single) • The second line displays the FCP280’s part number, hardware revision information, manufacturing date, OS version, and its status on the Control Network LED Indicators Light-emitting diodes (LEDs) on the front of the FCP280 module provide visual indication of the: • FCP280 operational status • Transmit/receive communications activity of four expanded fieldbus channels, fieldbus A and B for each LED indicators on the copper or fiber network adapters provide visual indication for: • Internal and external power supply health status • Communications activity to the Control Network A and B links, and to the FCP280(s)

Functional Specifications

• 200 Series FBMS: Up to 32 per Expanded fieldbus - up to 128 FBMs over all four Expanded fieldbuses when used exclusively with 200 Series FBMs. When used with a mix of 100 Series and 200 Series FBMs, up to 128 100 Series FBMs (Y-module) or competitive devices (such as Foxboro DCS System migration FBMs) with the remainder of this 128 module limit being 200 Series FBMs, depending on the Fieldbus loading of the FCP280. For example, an FCP280 may support 64 100 Series FBMs and 64 200 Series FBMs (as 64 + 64 = 128) over separate Expanded fieldbuses. As well, a maximum of 64 100 Series FBMs are allowed on each PIO bus/ baseplate port. For sizing constraints, see Field Control Processor 280 (FCP280) Sizing Guidelines and Excel Workbook (B0700FY). • 100 Series FBMs — Standard FCP280 Baseplates Only: A maximum of 64 100 Series FBMs are allowed on each PIO bus/baseplate port, with a total of 128 allowed per FCP280, depending on control processor sizing constraints (see Field Control Processor 280 (FCP280) Sizing Guidelines and Excel Workbook (B0700FY)). • Competitive Migration Modules: See the device-specific Product Specification Sheets.

The maximum number of control blocks that can be configured for the FCP280 (or faulttolerant FCP280 pair) is 8,000. Seven of these 8,000 blocks are pre-defined, leaving a total of 7,993 blocks that you can configure for the FCP280. Compounds and ECBs all count as blocks as well.
