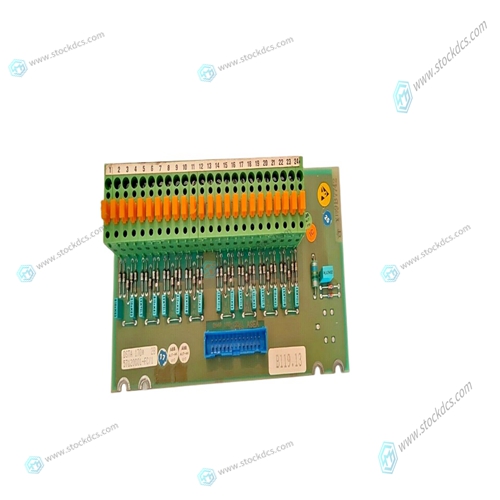

ABB DSTA 155 57120001-KD Digital output module

Digital Electronic Damping control - enables this patented feature which eliminates loss of torque and possible motor stalling conditions when operating at mid-range speeds. This instability is a phenomenon of the electronic, magnetic and mechanical characteristics of a stepping motor system. The compensation circuit damps mid-range oscillations by advancing or delaying switching of the output current relative to the incoming pulse train. Idle current reduction (ICR) - enables or disables idle current reduction which reduces motor winding current by 50% of its rated value during motor dwell periods. ICR begins 0.1 second after the last input step pulse occurs

System Diagram

The following diagram shows an installation of the drive in a typical system. Your installation may vary from this configuration. Typical components used with the 6445 include: • Motor • Computer or terminal

• External switches Selection and installation guidelines for these components are described in Chapter 2, “Installing the 6445 Microstep Indexer/Drive.”

How to Use this Manual

This manual contains information and procedures to install, set up, test with simple commands, and troubleshoot the 6445. Refer to the StepperBASIC Programming Manual for programming instructions and reference. 1.4 Warranty The Pacific Scientific 6445 drives have a two year warranty against defects in material and assembly. Products that have been modified by the customer, physically mishandled, or otherwise abused through miswiring, incorrect switch settings, and so on, are exempt from the warranty plan.
