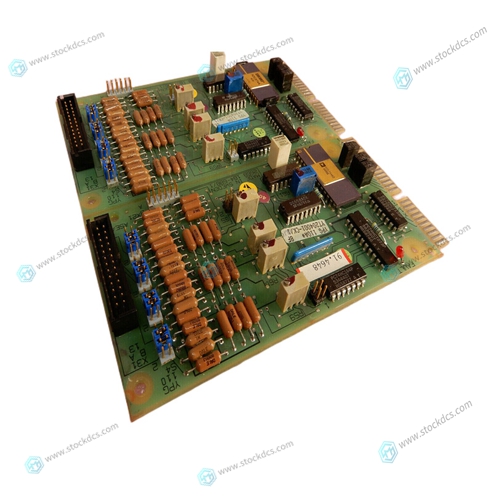

ABB YPC104B YT204001-BT Voltage output module

Features Include: • Automatic tuning for optimizing controller PID filter parameters

• Provides impulse, step and frequency response tests of actual hardware

• Four-channel storage scope for displaying real-time position, velocity, error and torque

• Displays X versus Y position for viewing actual 2-D motion path ƒ Terminal editor and program editor for easy communication with the controller

Galil provides programming tools so that users can develop their own custom software interfaces to a Galil controller. These tools include the ActiveX Toolkit and DMCWin.

ActiveX Toolkit Includes:

• a terminal control for sending commands and editing programs

• a polling window for displaying responses from the controller such as position and speed

• a storage scope control for plotting real time trajectories such as position versus time or X versus Y

• a send file control for sending contour data or vector DMC files

• a continuous array capture control for data collection, and for teach and playback

• a graphical display control for monitoring a 2-D motion path

a diagnostics control for capturing current configurations

• a display control for input and output status

• a vector motion control for tool offsets and corner speed control

Galil Communications API with C/C++

 When programming in C/C++, the communications API can be used as included functions or through a class library. All Galil communications programs written in C must include the DMCCOM.H file and access the API functions through the declared routine calls. C++ programs can use the DMCCOM.H routines or use the class library defined in DMCWIN.H. After installing DMCWin into the default directory, the DMCCOM.H header file is located in C:\Program Files\Galil\DMCWIN\INCLUDE. C++ programs that use the class library need the files DMCWIN.H and DMCWIN.CPP, which contain the class definitions and implementations respectively. These can be found in the C:\ProgramFiles\Galil\DMCWIN\CPP directory. To link the application with the DLL’s, the DMC32.lib file must be included in the project and is located at C:\Program Files\Galil\DMCWIN\LIB
