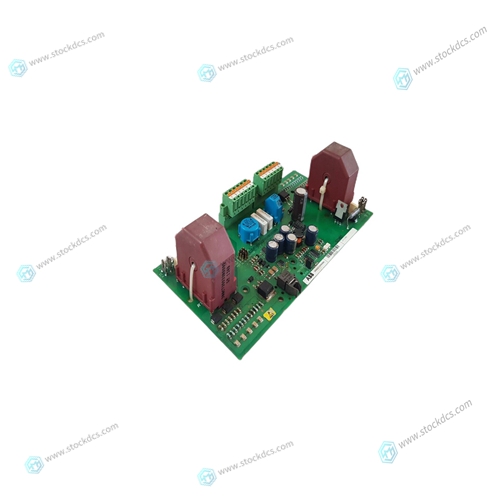

ABB HIEE300910R0001 DC input card

Drive Control and I/O Connections Both SV-M and SV-S drives share a common control board, to which most of the signal inputs and output connections are made. The layout of these connectors is shown in Figure 4-1. The information contained within this section, such as connector layouts and I/O circuit detail, is common to all drives. The only exception is the drive stop circuit which is looped between SV-M drives (using the ribbon wire X4 connectors), but is used to form individual drive stop circuits for the SV-S stand-alone drives.

Ready and Error LEDs

 The two single front panel LEDs give an immediate indication of the drive status. The green ‘Ready’ LED is illuminated to indicate the drive has power applied. The red ‘Error’ LED illuminates when a hardware or software error is detected. Error numbers are indicated on the 3 character 7 segment LED display - see Maintenance & Troubleshooting section for a list of error number meanings. Control Wiring All inputs are opto-isolated and are designed to work from 24V DC control levels. Control connections are made available via the Phoenix connectors X8, X9, X10 and X11 on the front panel of the drive.

Speed/Current Control Inputs

When configured as a speed controller, differential inputs AN1+ and AN1- control the motor speed. The input voltage range is between -10V and +10V, the positive voltage, on AN1+, producing CW rotation and the negative voltage CCW rotation. You configure the drive as a speed controller either by setting parameter P33=0, or by setting input E3=0 when P36=3. The speed of the motor is then controlled by the voltage applied between AN1+ and AN1- where

Common problem

We have this product in stock, and we can deliver it to you at any time when you need it badly.

*The warranty period of all products is 1 year, which has passed the professional test certification.

*If you need to order more than one product, please contact us, and we can offer you a discount.

*We only use HDL  UPS  and other express delivery methods to deliver spare parts.

*If you find that other suppliers offer lower prices for the same products, we are also willing to offer you further discounts based on their prices.

If you have any other questions, please feel free to contact us via email.

*Please let us know if you need any spare parts, we can give you further assistance, and we are waiting for your inquiry.
