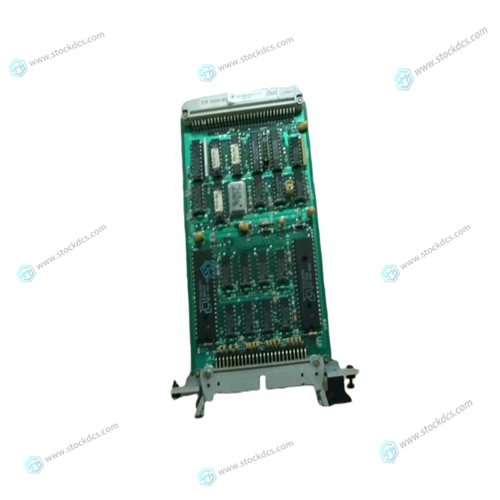

XYCOM XVME-400 Cylinder pressure monitor

Do not lay the wires such that their bending radius is less than that required by the local electrical code or NEMA standards. Use a branch feeder (circuit breaker or fused disconnect switch), sized to the maximum input current. Refer to your Local or National Electrical Code for KNOCKOUT, WIRE GAUGE and GROUNDING instructions. Before Connecting the battery charger/rectifier make sure that:

• The battery is not connected (if applicable)

• The circuit breakers are OFF

• All necessary relays, fuses and circuit boards are installed

• The unit is wired in accordance with the instructions

 (refer to the wiring connections and electrical diagram)

• Before connecting the load to the charger/rectifier, compare the load characteristics against those of the charger/rectifier (i.e. chopping voltages ripple, line-neutral voltage, positive-neutral voltage). Correct voltage and polarity are of critical importance. If your AC supply voltage differs from the one indicated on the nameplate, do not connect the charger/rectifier. The charger/rectifier tolerance for the AC input voltage is +/- 10%. If the voltage swing is higher, consult your local power company. Connect the AC wires and then the battery (if applicable) to the output terminals observing its polarity. Check all connections for tightness and polarity.

POWERING UP

 After all wires have been connected and all connections have been verified, the unit may be powered up as follows:

• Keep a log of adjustment readings (i.e. VFLOAT and VEQUALIZE values entered, alarm messages, alarm and SCR blinking LEDs).

• All input and output breakers must be in OFF position

• Apply power to the equipment from the source

• Turn the AC breaker ON • Turn the DC breaker (if supplied) ON

• Green LED must light up

• Wait for 5 seconds till you can read the system output voltage and status on the LCD • The system uses Soft Start to slowly rise the output current and the voltage

Quality assurance service

1. We provide high-quality parts of various brands, and you will find full

The model meets your needs.

2. For models that have been out of production for many years, we have all hard to find parts, so we can directly find us to solve all problems for you at one time.

3. If you are in a hurry to use this product, we can dispatch it for you.

4. All products can enjoy a one-year warranty service,

5. Our products are new and unused.

6. If you need a large quantity, you can contact us and I can offer you a discount.

7. You can ask me about the price and more information about the product via email. We welcome you
