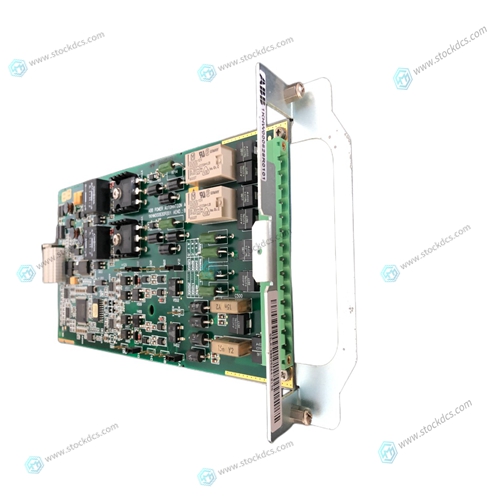

ABB G3LR 1KHW000628R0101 DC input card

A tightening cell is designated as the installed hardware for at least one tightening channel and at least one data interface for communication with the operating or evaluation program or the superior controller. This includes the corresponding tightening programs and tightening applications. A maximum of two tightening channels can be controlled by one SE352/SE352M tightening controller. The KE350/KE350G and SE352/SE352M communicate with each other via an internal bus system.

Control signals

The tightening cell communicates with the superior controller via control signals. A PLC assignment table determines which control signals are assigned to the inputs/outputs. The inputs/outputs are assigned in the BS350 operating program. Further information can be found in: – the online guide in the operating program (programming the assignment table) – the system documentation, chapter 5 “Control signals” (3 609 929 918) (signal description, sequence examples, and chronological sequences).

Maintenance

The SE352/SE352M control unit is maintenance-free if used as intended. Repair Reset function A software reset is generated if the reset button is briefly pressed, i.e. for < 1 second. The controller is reset once the button is released. A hardware reset is generated if the reset button is pressed for a long period, i.e. for > 3 seconds. The controller and the two corresponding servo amplifiers are reset once the button is released.



Application industry

The products can be used in the following industries: power plant, paper making, steel, mining, rubber, water supply, cement, chemical industry, glass, printing

Textile, machinery, plastics, coatings, medicine, hospitals, food, hotels, scientific research institutions
