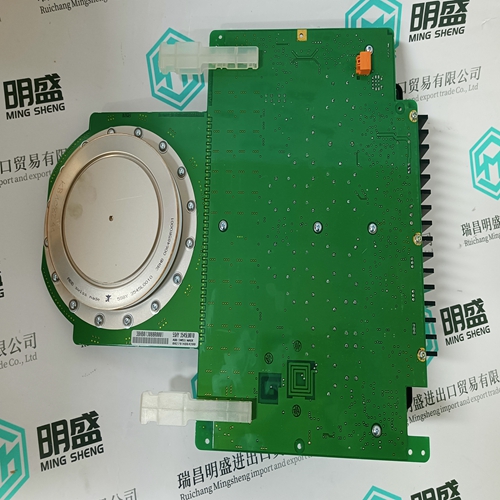

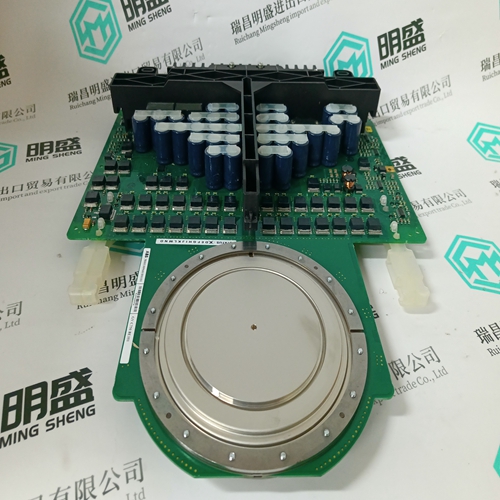

5SHY3545L0010 3BHB013088R0001 thyristor card

Attention: Motor will accelerate twice to 80% of Base Speed now Autotuning • On the panel press button LOC; LOC is displayed in the panel status row. • Select parameter Contr Service (7.02) = Sp Autotun and confirm with ENTER. • Within the next 30 seconds press the (I) button on the panel. This starts the autotuning procedure. • Main contactor is switched On and motor will start turning. The autotuning procedure is successfully finished if the panel displays the message None. • Main contactor is switched Off. After successful autotuning the following controller parameters are set: Speed Reg KP (5.07) Speed controller proportional gain Speed Reg TI (5.08) Speed controller integral time constant If the autotuning procedure failed the alarm message Autotuning Failed (A10) is displayed. Detailed information for the failure reason can be read from parameter Diagnosis (7.03). More explanations to the diagnosis messages are available in the chapter Troubleshooting.

Pressing the LOC button on the panel again the control is switched back to the input/output terminals. The LOC message in the panel status row disappears.

Flux adaptation

Autotuning • On the panel press button LOC; LOC is displayed in the panel status row. • Select parameter Contr Service (7.02) = Flux Adapt and confirm with ENTER. • Within the next 30 seconds press the (I) button on the panel. This starts the autotuning procedure. • Main contactor is switched On and motor will start turning. The autotuning procedure is successfully finished if the panel displays the message None. • Main contactor is switched Off.

After successful autotuning the following controller parameters are set: Field Cur 40% (4.07) Field current for 40% flux Field Cur 70% (4.08) Field current for 70% flux Field Cur 90% (4.09) Field current for 90% flux If the autotuning procedure failed the alarm message Autotuning Failed (A10) is displayed. Detailed information for the failure reason can be read from parameter Diagnosis (7.03). More explanations to the diagnosis messages are available in the chapter Troubleshooting. Pressing the LOC button on the panel again the control is switched back to the input/output terminals. The LOC message in the panel status row disappears. Thyristor diagnosis (Motor does not turn) Self diagnosis • On the panel press button LOC; LOC is displayed in the panel status row. • Select parameter Contr Service (7.02) = Thyr Diag and confirm with ENTER. • Within the next 30 seconds press the (I) button on the panel. This starts the self-diagnosis procedure. • Main contactor is switched On.
