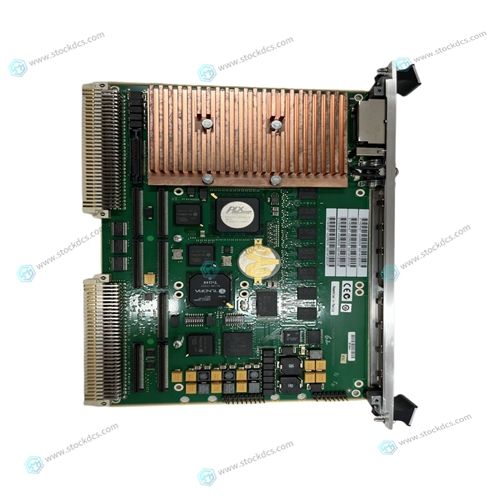

MOTOROLA MVME7100-0163 Dynamic pressure monitor

Make the PLC the System Time Master by opening the Controller Properties and clicking on the Date/Time tab. Click on the box next to the “Make this controller the Coordinated System Time Master” text so that a check mark appears in the box and accept the changes by clicking on OK. The Interpolated position value will be valid only if this step is performed.Create a GSV instruction in your ladder logic, with the Class Name set to CST and the Attribute Name set to CurrentValue, to read the system time from the PLC. The destination address must made up of two DINT registers.

If desired, add a value to word 0 of the time value read above.

This value is entered in 1µs increments, every 1000 equals 1ms, and equals the amount of time that you want to “look ahead.” Place the time value from step 3 into the output registers. The next time that the Interpolation Transmit bit transitions from either 0 to 1 or 1 to 0, the Central System Time will be sent to the 7264 module. 5. The latest Interpolation Data Value will be located in the input data the next time the module is updated at the normal RPI update.



Advantage products

We mainly make spare parts for DCS, PLC, robot control system and large servo system.

Main products: various modules/cards, controllers, touch screens, servo drives.

Advantages: professional off production accessories,

Fast delivery, accurate delivery time,

Main brands include ABB, GE/FANC, FOXBORO, TRICONEX, BENTLY NEVADA, A-B, EMERSON, OVATION, MOTOROLA, XYVOM, HONEYWELL, REXROTH, KUKA, NI, DEIF, Reliance Electric, Yokogawa, WOODWARD, SCHNEIDER, MOOG, PROSOFT and other brands
