The main products

Spare parts spare parts, the DCS control system of PLC system and the robot system spare parts,

Brand advantage: Allen Bradley, BentlyNevada, ABB, Emerson Ovation, Honeywell DCS, Rockwell ICS Triplex, FOXBORO, Schneider PLC, GE Fanuc, Motorola, HIMA, TRICONEX, Prosoft etc. Various kinds of imported industrial parts

Products are widely used in metallurgy, petroleum, glass, aluminum manufacturing, petrochemical industry, coal mine, papermaking, printing, textile printing and dyeing, machinery, electronics, automobile manufacturing, tobacco, plastics machinery, electric power, water conservancy, water treatment/environmental protection, municipal engineering, boiler heating, energy, power transmission and distribution and so on.

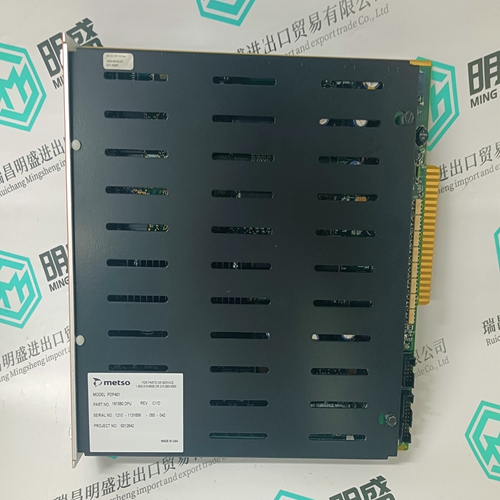

METSO PDP401 logical unit module

Pluggable I/O Modules There are 2 variants of pluggable I/O modules: • Panel Bus I/O modules with communication via Panel Bus (light-gray housings). Panel Bus I/O modules are automatically commissioned (with firmware download) by the XCL8010 Controller. • LONWORKS Bus I/O modules (dark-gray housings) with communication via LONWORKS (FTT10-A, link power compatible) for easy integration and use with 3rd-party controllers. Mixed I/O Modules Besides the pluggable Panel Bus I/O modules (consisting of a terminal socket and a removable electronic module), there are also mixed Panel Bus I/O modules. Specifically: the XF830A and XFU830A are mixed Panel Bus I/O modules, featuring an integrated terminal socket and a variety of inputs and outputs. Mixed Panel Bus I/O modules have a light-gray housing and are likewise automatically commissioned (with firmware download) by the XCL8010 Controller.

Pluggable I/O modules must be mounted on the appropriate terminal sockets. Pluggable Panel Bus I/O modules and pluggable LONWORKS Bus I/O modules use the same terminal sockets. These terminal sockets are available with push-in terminals (XS82…) or with screw-type terminals (XSU82…). Mixed I/O modules feature an integrated terminal socket.

Engineering with CARE

 During CARE engineering, the type of I/O modules, terminal assignment and module configuration are defined depending on the application. Planning In this step, the following has to be defined, if applicable: • Power supply • Fusing • Earth grounding • Lightning protection • Panel Bus wiring • Design of a LONWORKS network • Design of a C-Bus network • Useful accessories • Cable selection Note In Europe the system transformer(s) must be safety isolating transformers according to IEC61558-2-6. In the U.S.A. and Canada, NEC Class-2 transformers must be used. Power Consumption When selecting the appropriate transformer, take into account the number of individual modules, accessories, and field devices in determining the total power consumption.

Depending upon the power consumption of the field devices used, it is possible to use either a single transformer to power both the XCL8010 Controller and attached field devices, or it may be necessary to employ an additional transformer. See also section "Field Device Cables" on page 13 and connection examples on page 29.
