GE DS200TBQAG1ABB Ethernet interface card

GE DS200TBQAG1ABB Ethernet interface card

The GE DS200TBQAG1ABB is a digital input module for the GE Mark VIe control system. It is used to monitor the status of digital inputs, such as switches or relays, and report the status back to the control system. The module has 32 input channels, which can be individually configured for different types of input signals, such as AC or DC voltage, contact closure, or frequency.

The DS200TBQAG1ABB module is designed to be installed in a rack or cabinet with other modules that make up the Mark VIe control system. It communicates with the control system using the Mark VIe's Ethernet-based control network, which allows for fast and reliable data transfer between modules.

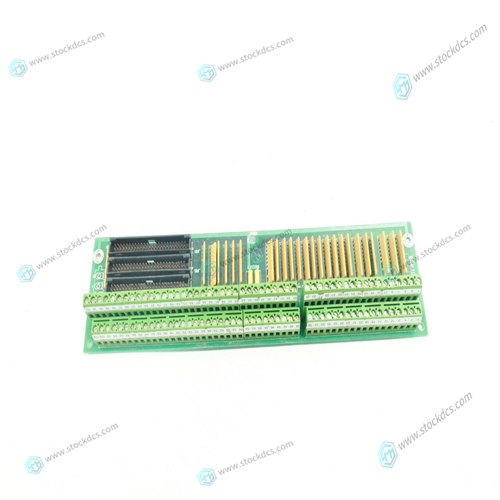

DS200TBQAG1ABB is a GE RST terminal board. The DS200TBQAG1ABB has two 90 pin terminal blocks that support up to 180 signal lines and are labeled with TB1 and TB2, as well as three 20 pin connectors. In addition, the board also has two 20 pin connectors connected to the ribbon cable.

Overall, the GE DS200TBQAG1ABB is an important component of the Mark VIe control system, which is widely used in power generation and other industrial applications.
