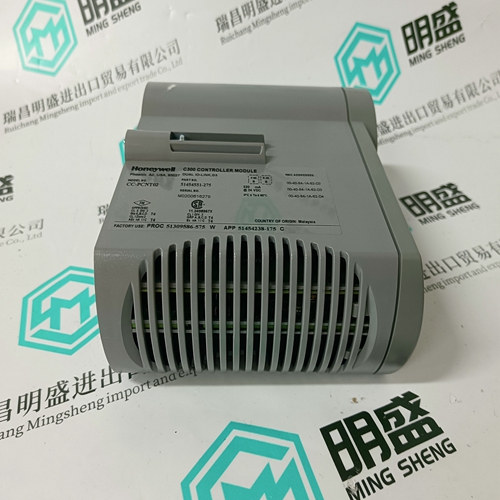

HONEYWELL CC-PCNT02 Analog module

The Excel 800 System can be powered by one or more external transformers. Note The maximum length for the power supply cable from a transformer is 3 m. This also includes the length of the modules and the connection cables between the rails. Referring to Fig. 31 the following conditions must be fulfilled: A + B ≤ 3 m and A + C ≤ 3 m Single or the First Transformer ► Connect the transformer to terminals 1 and 2 of the XCL8010 Controller.Additional Transformer ► Connect the additional transformer in a second room or cabinet to terminals 73 and 74 or 77 and 78 of an I/O module.Equipment damage! ► Do not use bridge connectors to connect modules powered by different transformers. ► When connecting modules powered by different transformers using cables, be sure to not connect terminals 73 and 77.This section describes how to connect a controller system which uses Panel Bus I/O modules, only or LONWORKS Bus I/O modules, only. Controller and I/O Modules on a Single Rail ► Connect controller and I/O modules using the bridge connectors. This provides power supply and communication connection. No further wiring is necessary. Controller and I/O Modules on Several Rails in a Single Cabinet The rails of a controller system are connected in series. ► Connect the rail ends as follows: – Power supply via power supply terminals 73, 74 or 77, 78 – Communication via communication terminals 71, 72 or 75, 76

Panel Bus I/O Modules in Separate Rooms

 In this scenario, communication and reference voltage (24 V0) must be connected between the rooms. ► Connect the last module of room 1 to the first module of room 2: – Reference voltage via power supply terminals 74 or 78 terminals 73 and 77 must not be connected – Communication via communication terminals 71, 72 or 75, 76 Maximum Power Cable Length The maximum length for power supply cable per side is 3 m. This also includes the connection cables between the rails, the lengths of the modules, and the cable from the transformer.During CARE engineering, each Panel Bus I/O module is assigned its own unique address. For the sake of clarity for maintenance personnel, it is recommended that you address the Panel Bus I/O modules in ascending order 0 through F.Connecting Field Devices with Power Supply Depending on the distance from the controller, field devices can be supplied by the controller or need a separate transformer, see Table 20 on page 13. For fusing see section "Fusing Specifications" on page 10. Example 1: Power Supply via Controller • 24 V actuator connected to an analog output module • Less than 100 m away from the controller
